T-100 Mobile Sand Making Plant

CONSTMACH T-100 Mobile Crushing and Screening plant is also called as MOBILE SAND MAKING MACHINE is a perfect solution for production of especially fine material that is also known as sand which has between 0-5 mm granul size with excellent cubic shape. T-100 is the result of advanced design and engineering, premium quality components with long life and excellent craftsmanship.

In addition to the materials which is provided by precrushing in primary and secondary crushing operations, it is also possible to feed the system directly with natural stone which is not bigger than 150 mm.

All kinds of materials with different hardness levels such as granite, basalt, dolomite, gabbro, limestone etc. can be processed by T-100 with satisfying results.

Production capacity of T-100 mobile sand making machine differs between 80 to 135 tph according to hardness level of the material to be crushed. In addition to 0-5 mm sand, it is possible to get up to 3 different fractions at the same time.

T-100 Mobile Sand Making Plant is the combination of:

  • Feeding Hopper with vibrating feeder
  • CTC-1210 Tertiary Impact Crusher
  • Feeding Conveyors
  • Vibrating Screen with 3 decks
  • Feedback Conveyor
  • Stockpile Conveyors
  • Mobile chassis with hydraulic legs
  • Automation System with PLC and remote controller
  • Dust Removing System
  • Electric Generator Set (Optional)

In case of necessity, it is possible to locate a diesel electric generator set to the chassis of the plant.

T-100 is a user friendly system which offers easy mount/assemble features to its users. The system can be put into operation in only few hours after reaching the jobsite. In case of request, feeding hopper covers and stockpile conveyors can be equipped with hydraulic opening mechanism and in that case whole system can be taken to working position without any external equipment.

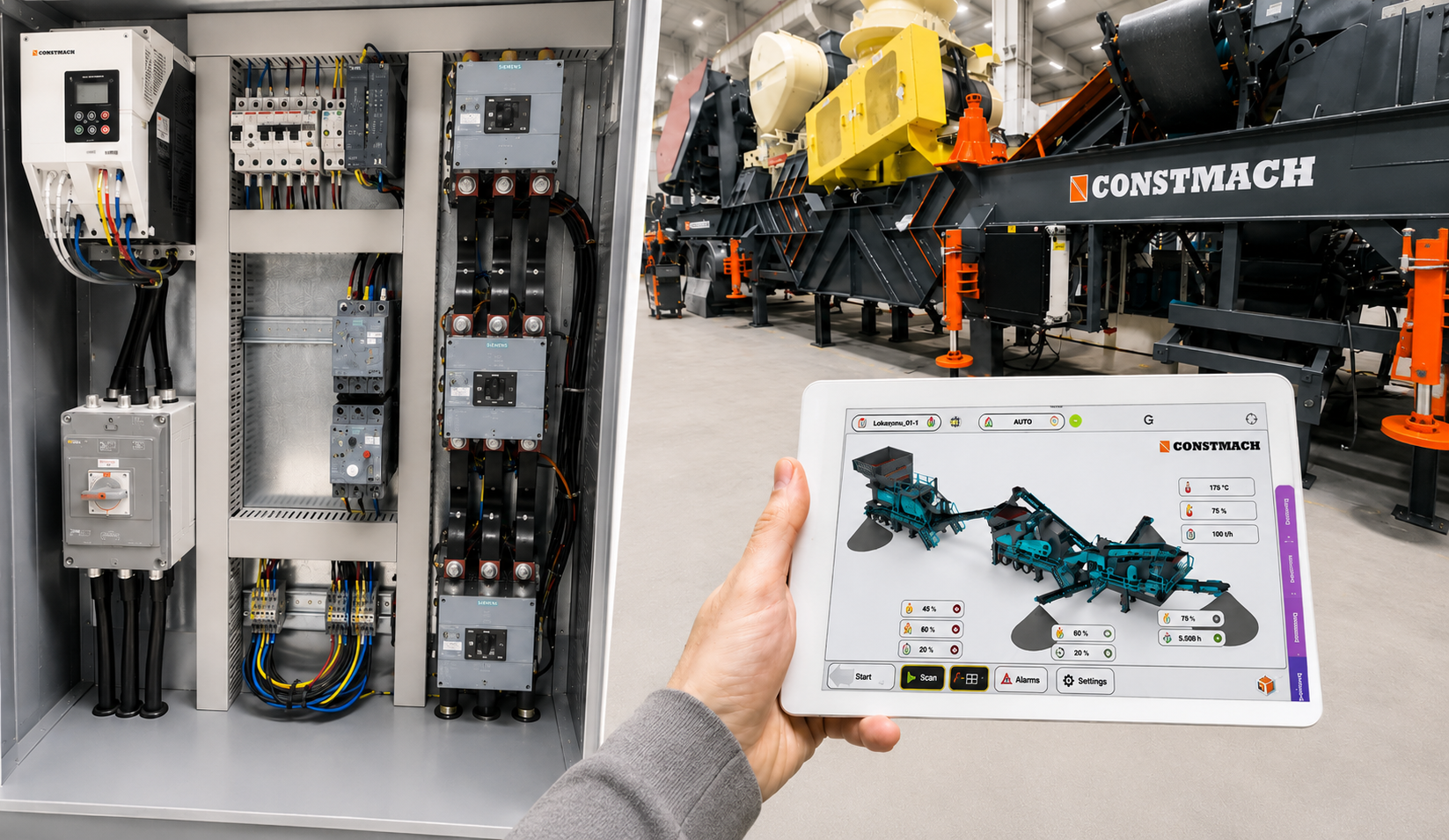

T-100 is equipped with high-tech automation system including top class SIEMENS – SCHNEIDER brand electronic components and PLC . T-100 is operated by just a tablet controller.

Overall dimensions of the plant are specified as per international road transport regulations and the plant can be moved by only one tractor with king-pim connection easily between different jobsites.

T-100 Mobile Sand Making Plant Technical Specifications
Production Capacity 80-135 tph
Maximum Feeding Size 150 mm
Feeding Height 3.8 meters
Main Configuration Tertiary Impactor + 3 Decks Screen
Total Motor Power 220 kW
Electric Generator Requirement 550 kVA
Weight of the plant 36 Tonnes
Sizes of the plant 15(L) x 3.2(W) x 4.2(L) meters
Chassis Type Single chassis on wheels, equipped with hydraulic opening legs.
Overall dimensions of T-100 are determined according to international road transport regulations and it is transported between jobsites easily.
T-100 Mobile Sand Making Plant General Layout
