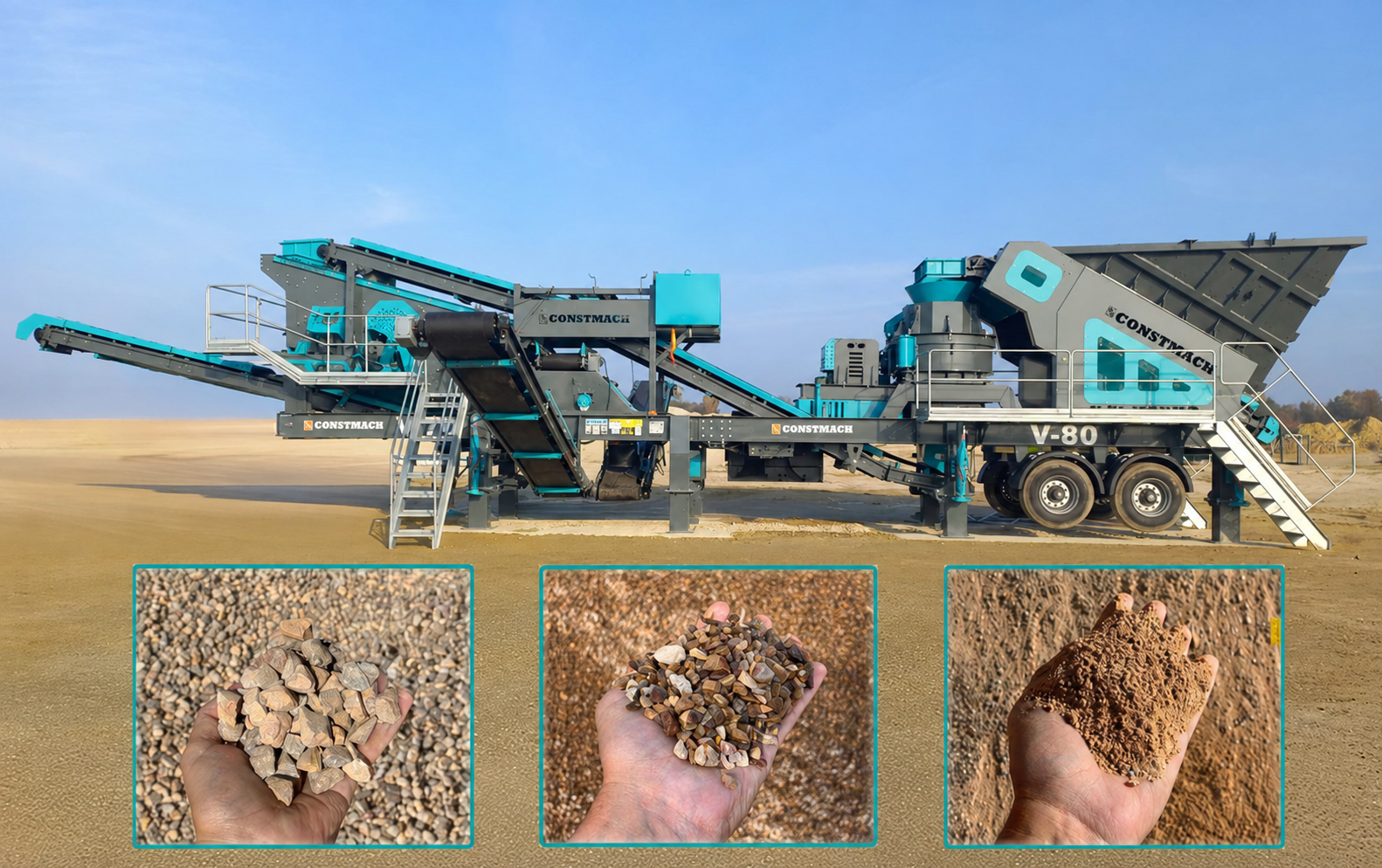

V-80 Mobile Sand Making Plant

CONSTMACH V-80 Mobile Crushing plant is also known as MOBILE SAND MAKING PLANT is an excellent application for generation of specially fine aggregates (material) that is also called as sand whose fraction size is from 0 to 5 mm particul size with great cubical shape. V-80 is the outcome of sophisticated engineering and advanced design, high level quality components with long-lasting and awesome workmanship.

In addition to the materials which is provided by precrushing in primary and secondary crushing operations, it is also possible to feed the system directly with natural stone that is not coarser than 40 mm.

All kinds of materials with different hardness levels such as granite, basalt, dolomite, gabbro, limestone etc can be processed by V-80 with satisfying results.

Productivity V-80 mobile crushing plant varies between 150 to 200 tph regarding toughness grade of the stone to be processed. In addition to fine material (upto 5 mm) it is possible to get up to 3 different final materials simultaneously.

V-80 Portable Sand Plant is the configuration of:

  • Feeding Bunker with vibro feeder
  • VSI 800 CR Closed Rotor Vertical Shaft Impact Crusher
  • Feeding Conveyor between feeding bunker and VSI Crusher
  • Feeding Conveyor between VSI and screen
  • Vibrating Screen with 3 decks
  • Feedback Conveyor for oversize material
  • Stock Conveyors
  • Wheeled mobile chassis with hydraulic legs
  • Automation System with PLC and remote controller
  • Dedusting System
  • Electric Generator (Optional Feature)

In case of need, it is possible to add a diesel electric generator to main chassis of the system.

V-80 is a user-friendly combination which promises easy mount/assemble features to its operators.. The plant can be put into use in very short time. In case of need, it is possible to equip the feeding bunker and stockpile conveyors with hydraulic cylinders and thus the plant can be taken to operation without needing any external equipment such as crane, loader etc.

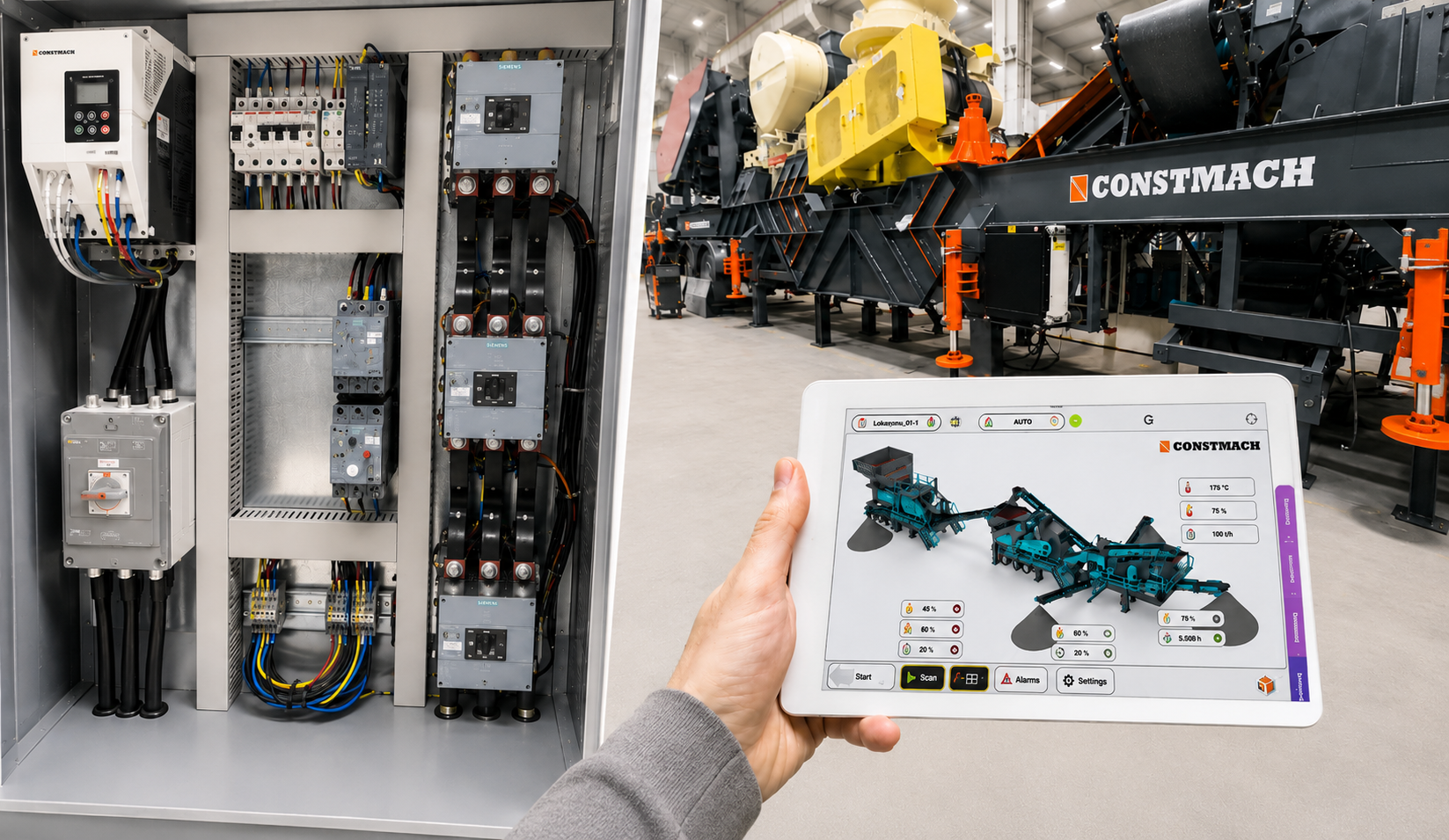

V-80 is equipped with high-tech automation system including top class SIEMENS – SCHNEIDER brand electronic components and PLC . V-80 is operated by just a tablet controller.

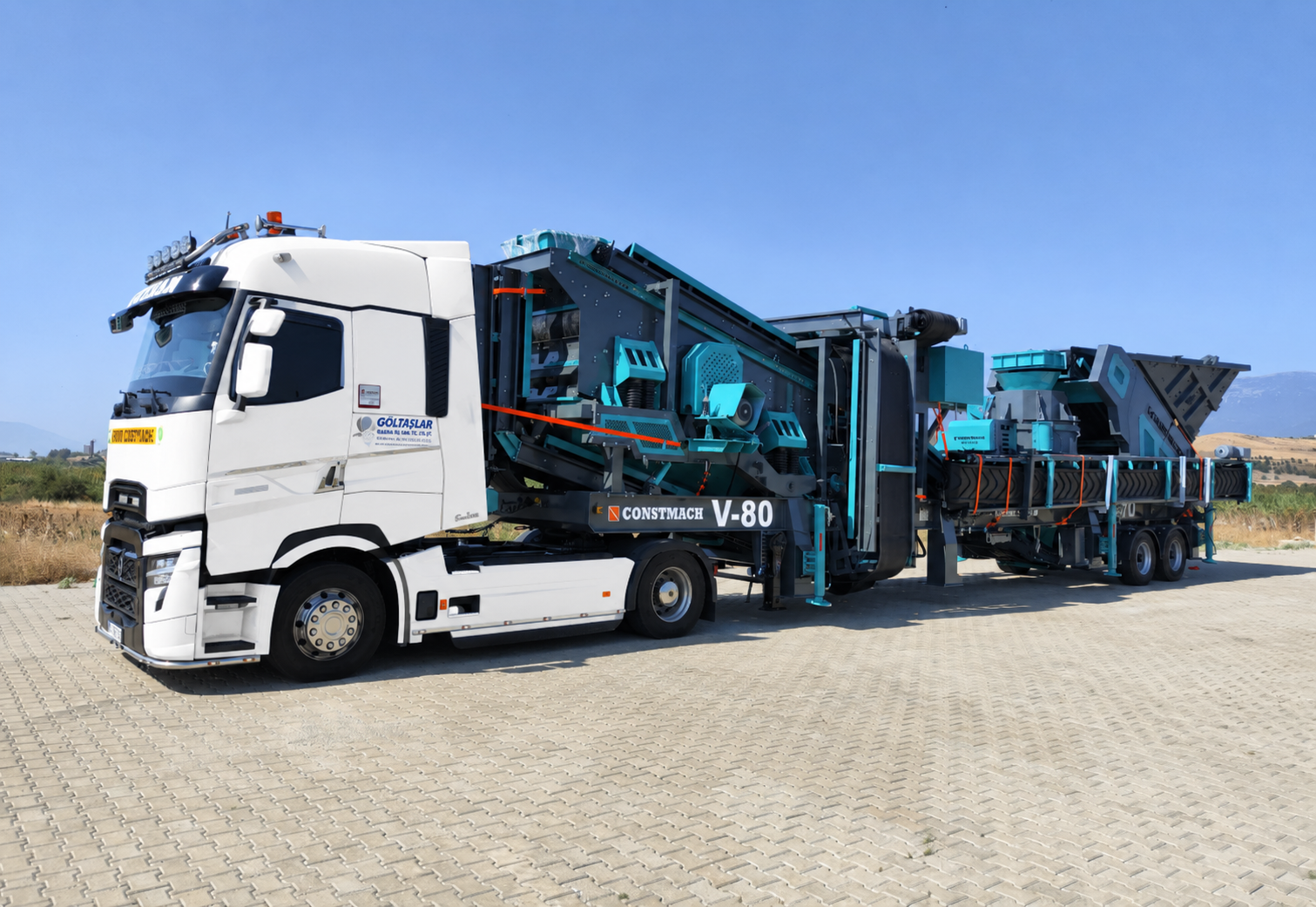

Overall dimensions of our mobile plants are determined according to international road transport regulations and our mobile plants are transported by only a tractor between jobsites of our clients.

You can see the general layout, transport information and photos of V-80 by clicking the related tabs and you can request a quotation by clicking REQUEST A QUOTE tab.

V-80 Mobile Sand Making Plant Technical Specifications
Production Capacity 150-200 tph
Maximum Feeding Size 40 mm
Feeding Height 4 meters
Main Configuration VSI Crusher + Vibrating Screen
Total Motor Power 385 kW
Electric Generator Requirement 600 kVA
Weight of the plant 30 Tonnes
Sizes of the plant 14(L) x 3 (W) x 4.2(L) meters
Chassis Type Single chassis on wheels, equipped with hydraulic opening legs.
Overall dimensions of V-80 are determined according to international road transport regulations and it is transported between jobsites easily.
V-80 Mobile Sand Making Plant Video
V-80 Mobile Sand Making Plant General Layout
