JS-1 - Mobile Crusher Plant

CONSTMACH JS-1 Mobile Crushing and Screening plant is used for processing of materials with middle hardness grade such as limestone, riverstone, dolomite etc.

JS-1 is the result of sophisticated engineering and advanced design, high quality components with long-lasting and excellent craftsmanship.

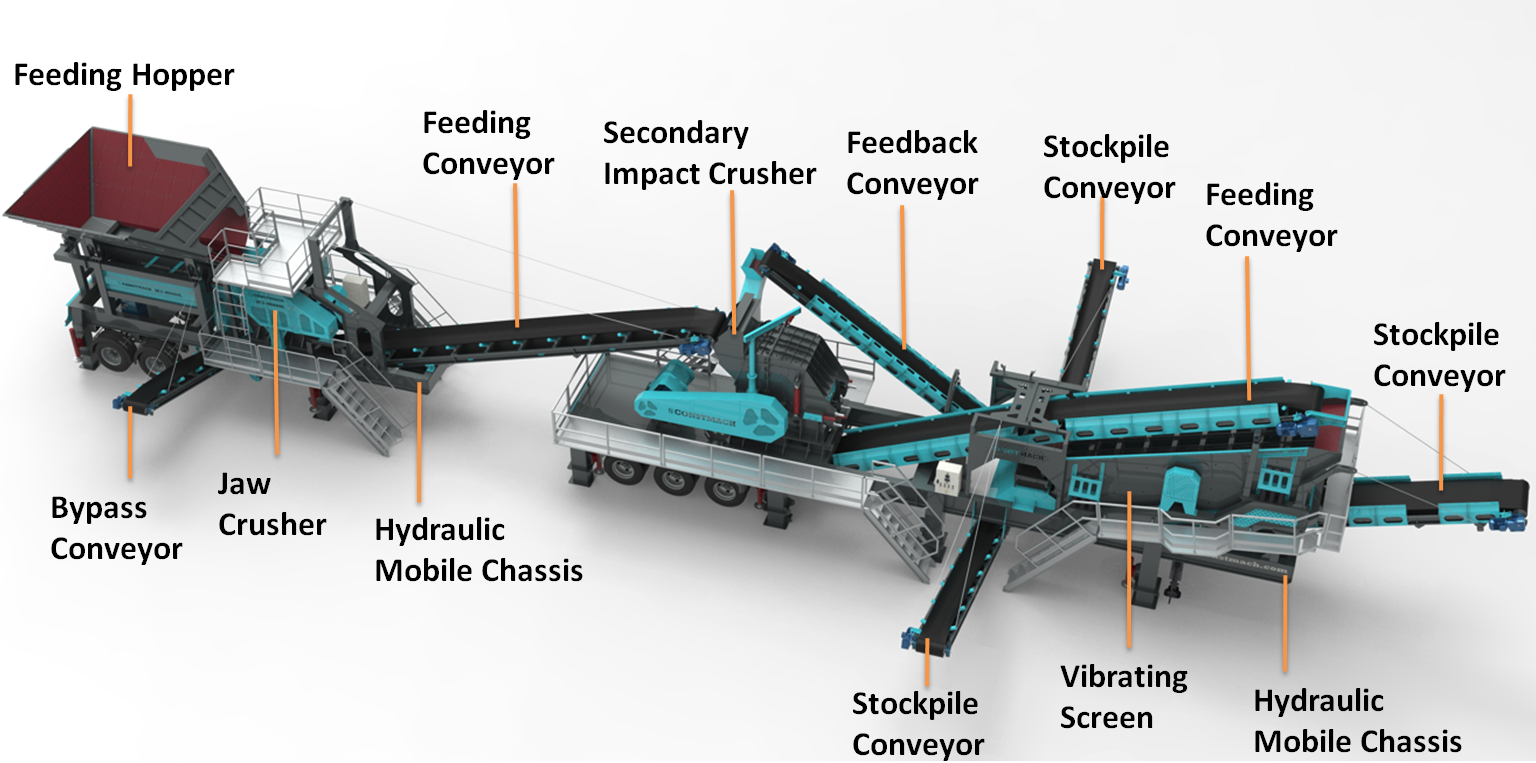

JS-1 Mobile Crushing Plant is combination of:

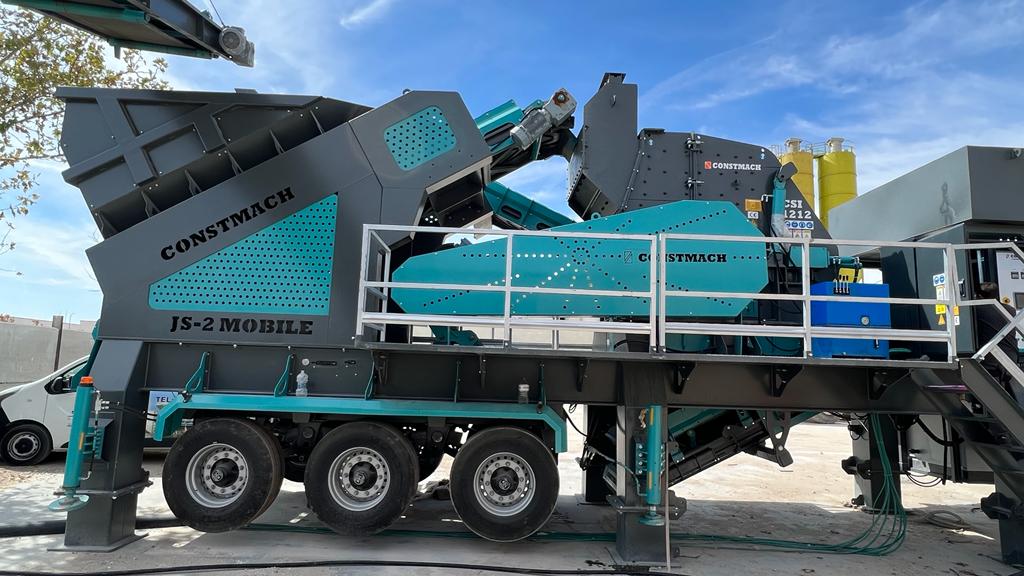

    1st Chassis:

    • Feeding Hopper with Vibrating Feeder
    • CJC-60 Primary Jaw Crusher
    • By-pass Conveyor (for extraction of soil
    • Feeding Conveyor between Jaw Crusher and Hopper of Secondary Impact Crusher
    • Wheeled Mobile Chassis with Hydraulic Legs
    • Power & Control Panel

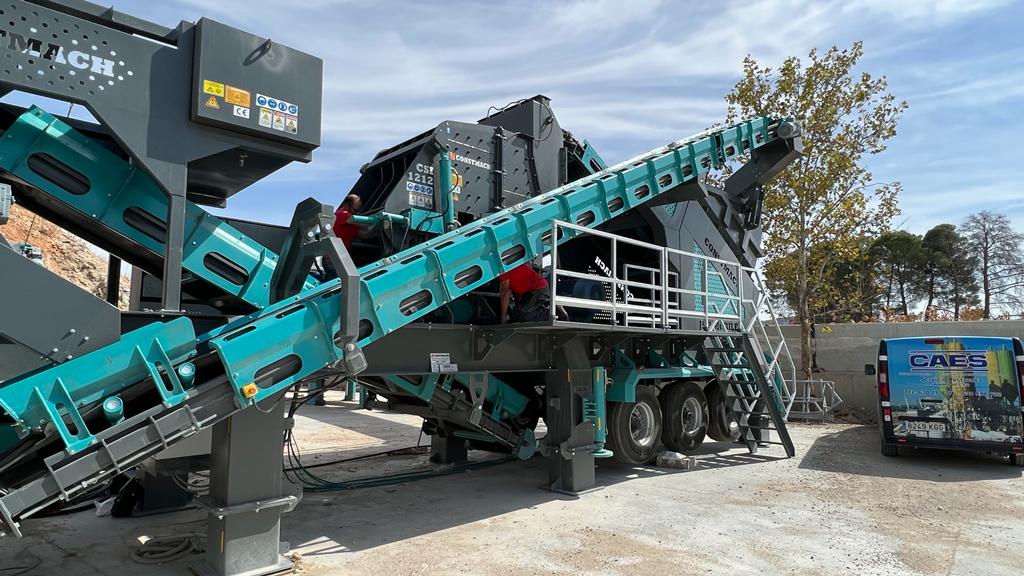

    2nd Chassis:

    • CSI 1210 Secondary Impact Crusher
    • Vibrating Screen with 3 Decks
    • Feedback Conveyor from Vibrating Screen to the Hopper of Secondary Impact Crusher
    • Fold-up Type Stockpile Conveyors
    • Wheeled Mobile Chassis with Hydraulic Legs
    • Power & Control Panel
    • Dust Removing System
    • Diesel Electric Generator Set (Optional Application)

    JS-1 Production capacity changes between 60 to 80 tonnes per hour according to hardness level of stones to be crushed. Maximum feeding size is 600 x 350 mm. Thanks to special design of the secondary impact crusher in the system, produced final fractions have excellent cubical shape which is a desired result especially for concrete production. It is possible to get 3 or 4 different fractions at the same time.

    In case of need, it is possible to adapt an electric generator to chassis of the plant.

    JS-1 is a user-friendly combination which promises easy mount/assemble features to its operators. The plant can be put into use in very short time. In case of need, it is possible to equip the feeding hopper and stock conveyors with hydraulic opening mechanism and in that case the plant can be taken to operation without needing any external equipment such as crane, loader etc.

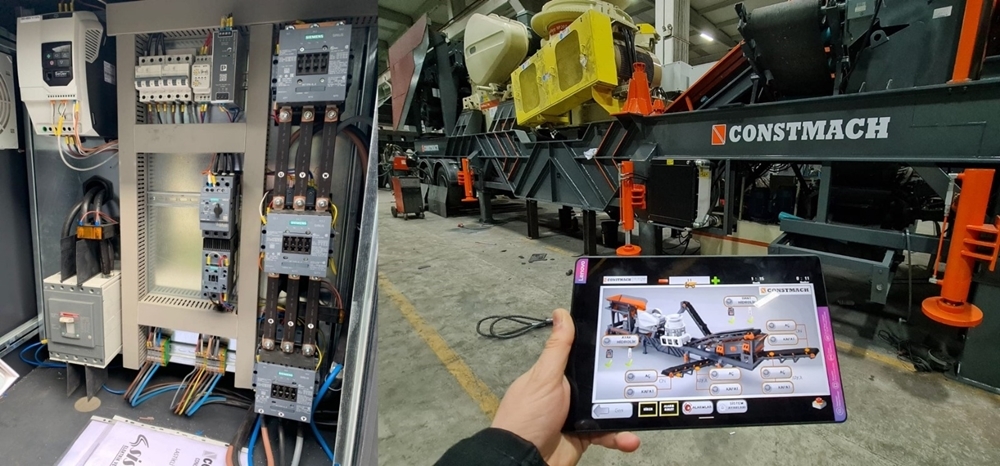

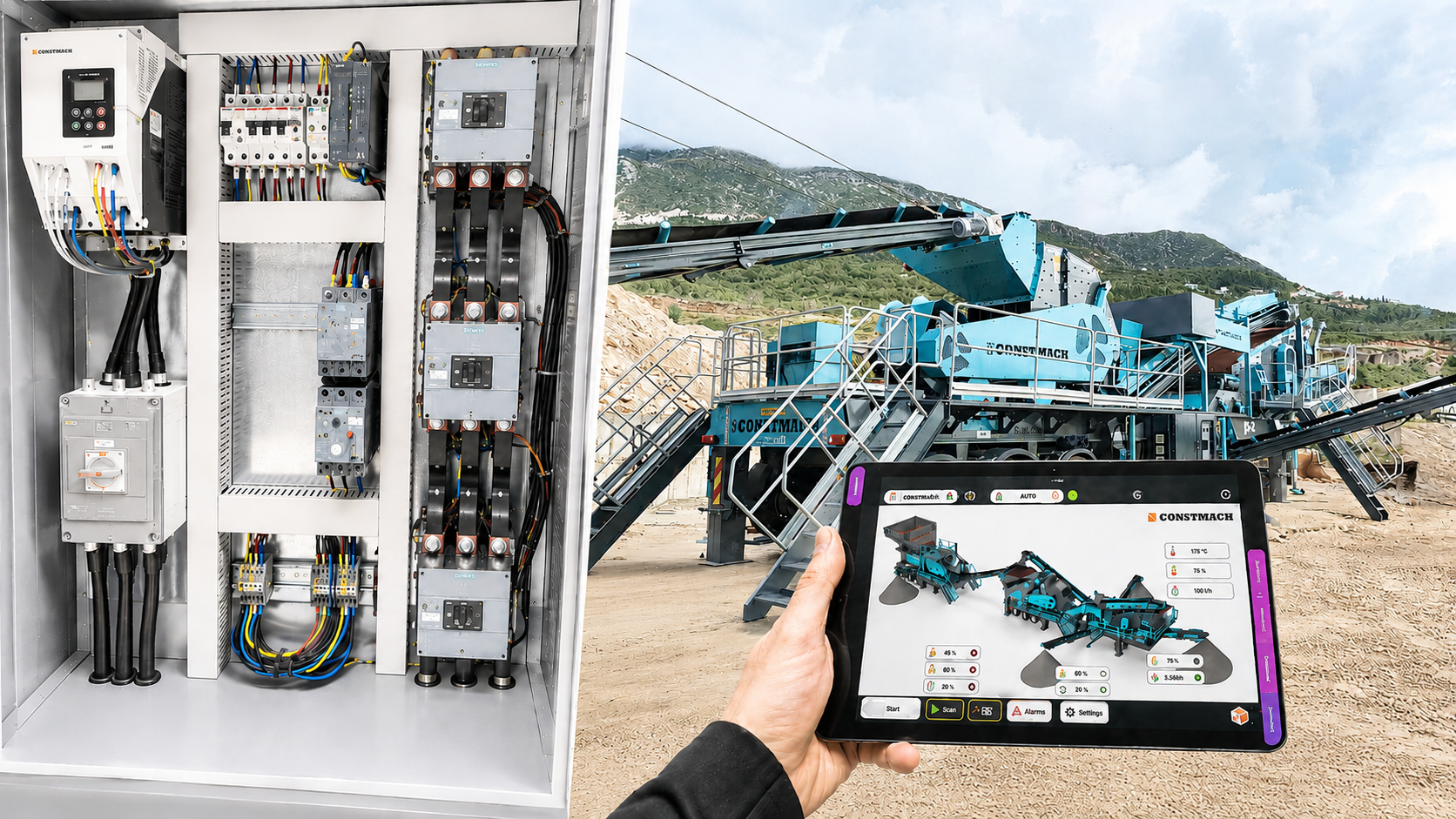

    JS-1 is equipped with high tech automation system including top class SIEMENS – SCHNEIDER brand electronic components and PLC . JS-1 is operated through just a tablet controller.

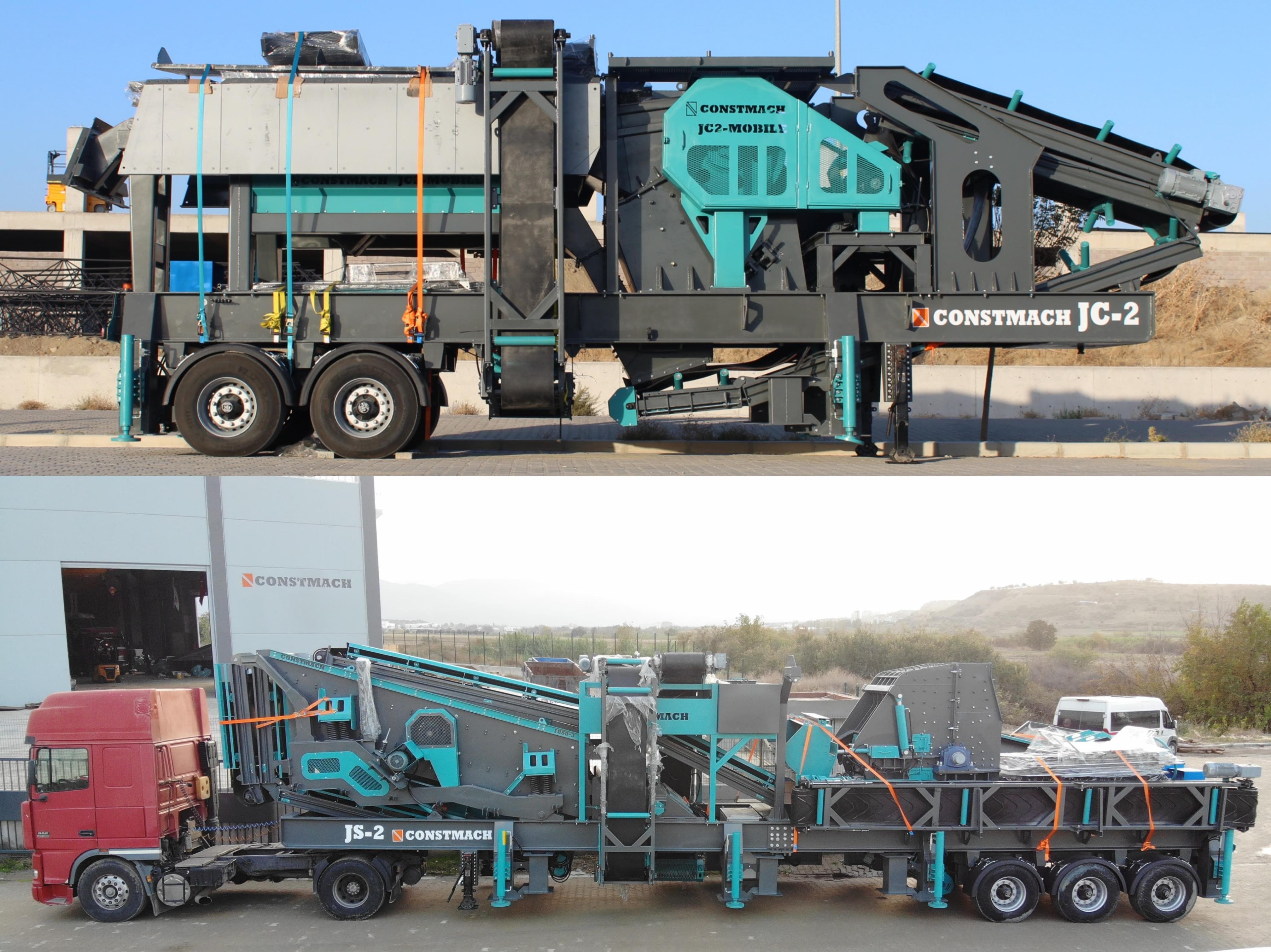

    Overall dimensions of our mobile plants are defined as per international road transport regulations and JS-1 is transported by only one tractor between jobsites easily.

    JS-1 - Mobile Crusher Plant Technical Specifications
    Production Capacity 60-80 tph
    Maximum Feeding Size 600 x 380 mm
    Feeding Height 4.5 meters
    Main Configuration Primary Jaw + Secondary Impact + 3 Decks Screen
    Total Motor Power 275 kW
    Electric Generator Requirement 550 kVA
    Weight of the plant 60 Tonnes (total weight of two chassis)
    Sizes of the plant

    1st chassis: 11(L) x 3(W) x 4.4(H) meters

    2nd chassis: 3.35(L) x 4.3(W) x 17.8(H) meters

    Chassis Type Double chassis
    JS-1 - Mobile Crusher Plant Video
    JS-1 - Mobile Crusher Plant General Layout
