JC-1 Mobile Crushing Plant

CONSTMACH JC-1 Mobile Crushing plant is a perfect solution for crushing hardest rocks with very high abrasiveness and Silica (SiO2) ratio such as granite, basalt, gabbro etc.

JC-1 is the outcome of sophisticated design and engineering, usage of top quality materials and components with long-lasting and excellent craftsmanship.

JC-1 Mobile Crushing & Screening Plant includes double chassis and it is combination of:


1st Chassis

  • Feeding Hopper with vibrating feeder
  • CJC-60 Primary Jaw Crusher
  • By-pass conveyor (for extraction of soil)
  • Feeding Conveyor between jaw crusher and hopper of cone crusher
  • Wheeled mobile chassis with hydraulic legs
  • Automation System with PLC and remote controller

2nd Chassis

  • Feeding Hopper of Cone Crusher
  • Feeding conveyor between hopper and cone crusher
  • Cone Crusher, METSO HP 100 or equivalent
  • Vibrating Screen with 3 decks
  • Feedback Conveyor from vibrating screen to the hopper of cone crusher
  • Fold-up type Stockpile Conveyors
  • Wheeled mobile chassis with hydraulic legs
  • Automation System with PLC and remote controller
  • Dust Removing System
  • Diesel Electric Generator Set (Optional Application)

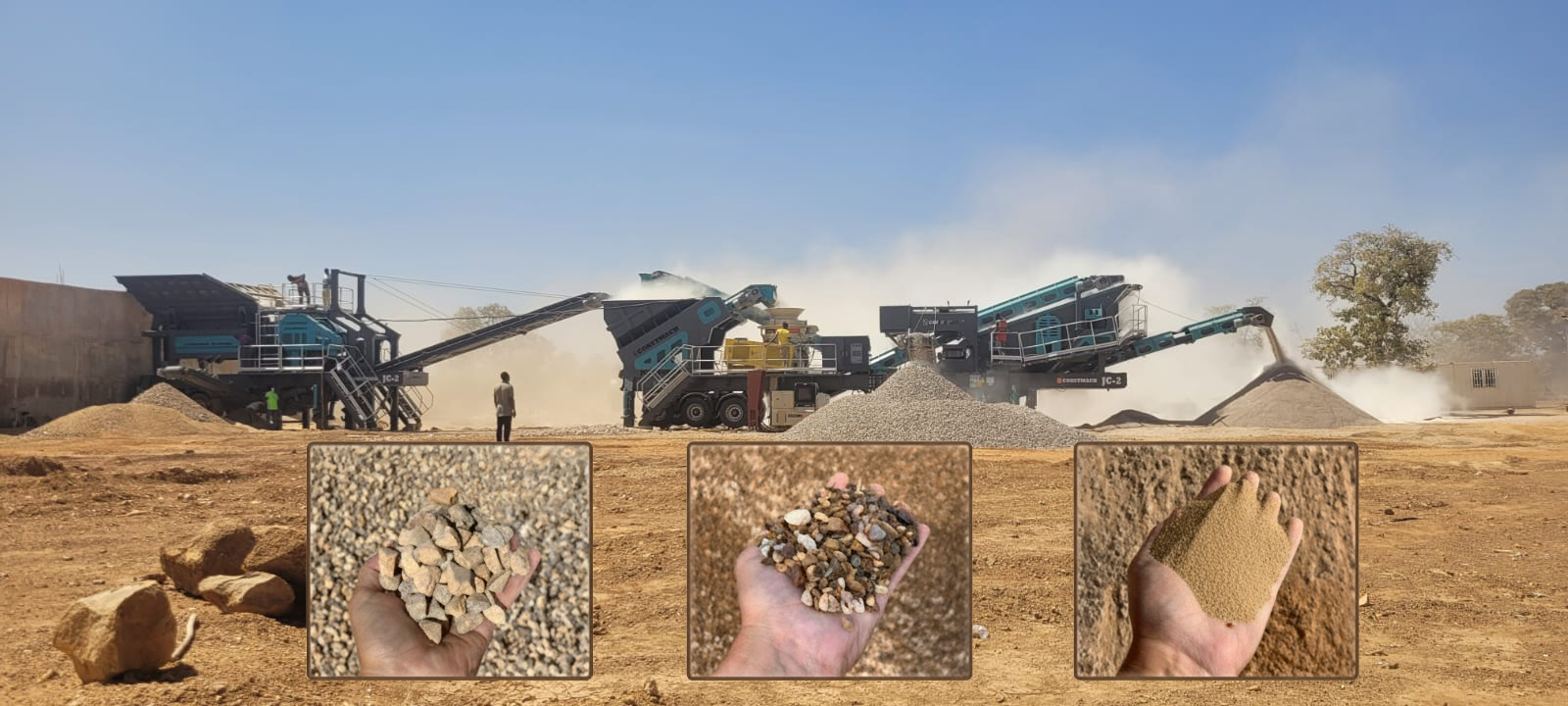

JC-1 production capacity changes between 60 to 80 tph according to hardness grade of the material to be crushed. Maximum feeding size is 610 x 380 mm. The cone crusher is Metso HP 100 or equivalent model. It is possible to get 3 or 4 different fractions at the same time. In case of needing for increasing the fine material ratio and/or having more cubical product, the plant is equipped with our V-70 mobile sand making plant which includes a VSI crusher. In that case the overall configuration is called as JCV-1.

In case of need, it is possible to adapt an electric generator to chassis of the plant.

JC-1 is a user-friendly combination which promises easy mount/assemble features to its operators. The plant can be put into use in very short time. In case of need, it is possible to equip the feeding hopper and stock conveyors with hydraulic opening mechanism and in that case the plant can be taken to operation without needing any external equipment such as crane, loader etc.

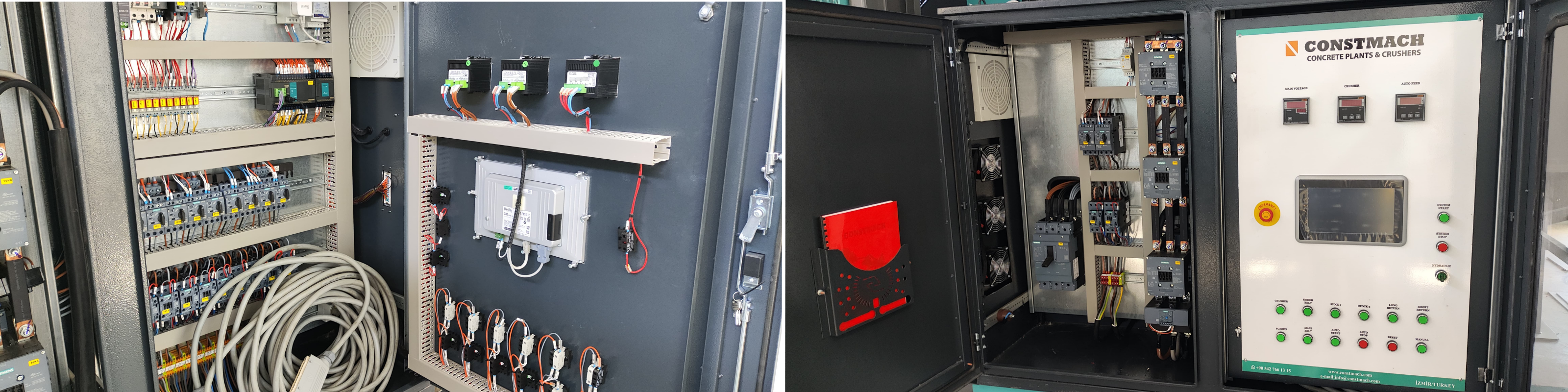

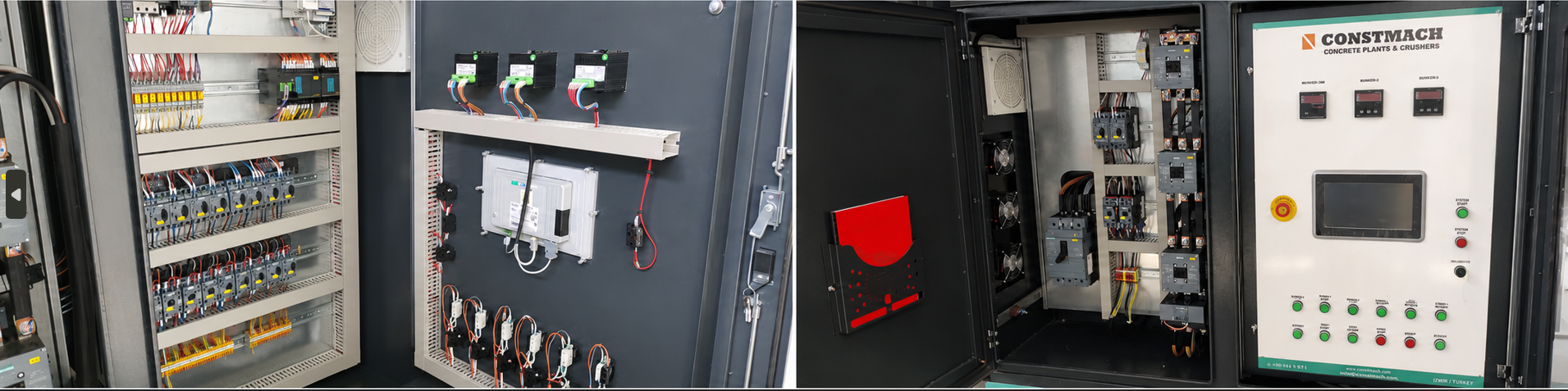

JC-1 is equipped with high-tech automation system including top class SIEMENS – SCHNEIDER brand electronic components and PLC . JC-1 is operated by just a tablet controller.

Overall dimensions of JC-1 are determined according to international road transport regulations and it is transported between jobsites easily.

You can see the general layout, transport information and photos of JC-1 Mobile Crushing Plant by clicking the related tabs and you can request a quotation by clicking REQUEST A QUOTE tabs.

JC-1 Mobile Crushing Plant Technical Specifications
Production Capacity 60-80 tph
Maximum Feeding Size

610 x 380 mm

Feeding Height 3.8 meters
Main Configuration Primary Jaw + Secondary Cone + 3 Decks Screen
Total Motor Power 200 kW
Electric Generator Requirement 400 kVA
Weight of the plant 60 Tonnes
Sizes of the plant

10(L) x 3.1(W) x 4.4(L) meters

17(L) x 3.8(W) x 4.4(L) meters

Chassis Type Double chassis on wheels, equipped with hydraulic opening legs.
JC-1 Mobile Crushing Plant Video
JC-1 Mobile Crushing Plant General Layout
