Stationary 120

CONSTMACH STATIONARY 120 full automatic stationary type Concrete Batching Plant is a suitable solution for high capacity also long term ready mixed concrete projects in dedicated jobsite areas. With its capability to produce any type of concrete, stabilized and problem free structure, warranty of spare part and technical service and high quality, compliancy in CE standards CONSTMACH STATIONARY 120 concrete batching plants are preferred by the professionals.

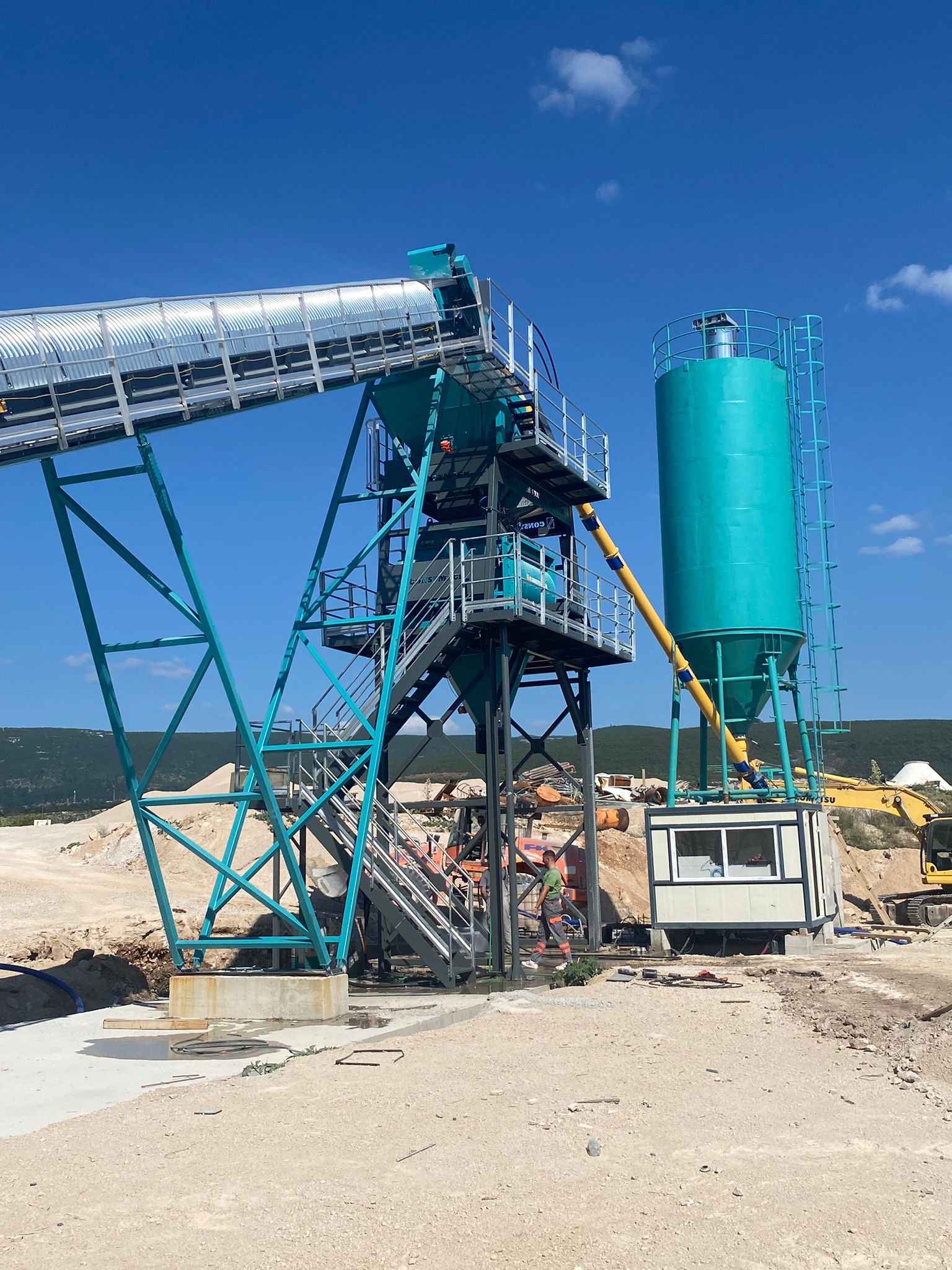

Stationary 120 | Stationary Concrete Batching Plant | Constmach 1

Twin shaft mixers with 3 m3 wet concrete volume are used in STATIONARY 120 concrete batching plants.

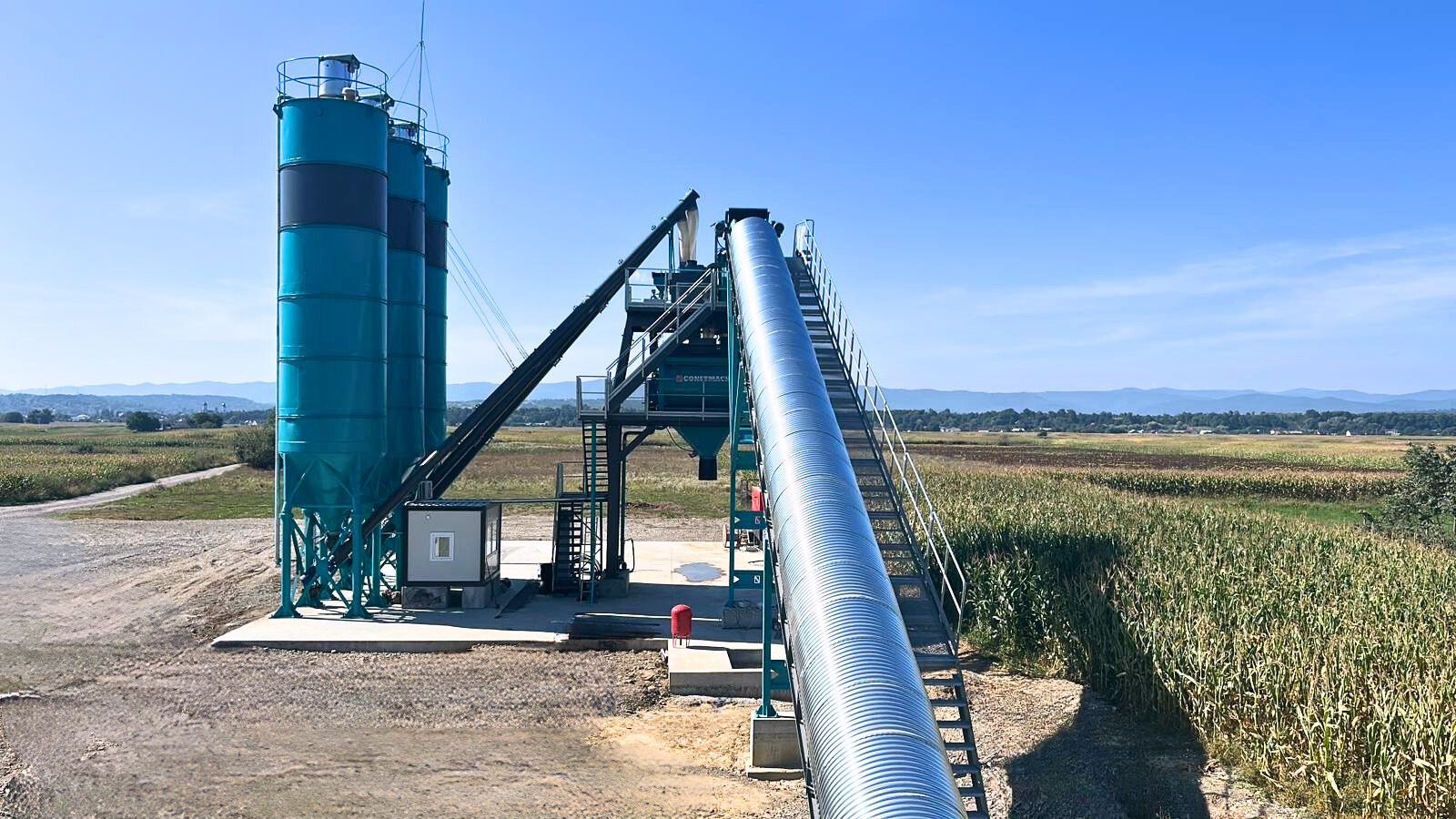

Stationary 120 | Stationary Concrete Batching Plant | Constmach 2

STATIONARY 120 concrete plant can be equipped with different size of cement silos from 100 to 500 tonnes storage capacity according to the needs and conditions of our clients’ projects. If the cement is supplied in bags, the cement is filled to the silos easily by means of a big bag opening and silo charging systems which are integrated to STATIONARY 120.

Stationary 120 | Stationary Concrete Batching Plant | Constmach 3

Our company knows very well that the climate conditions have major affects on the quality of concrete. While STATIONARY 100 concrete batching plant in cold-climate regions such as Russia, Kazakhstan, Ukraine, Northern Europe etc. are being heated by hot vapor generators and insulated panels, the concrete water to be used in STATIONARY 120 concrete plants in hot-regions such as middle east, GCC or Africa countries is cooled by chillers.

Stationary 120 | Stationary Concrete Batching Plant | Constmach 4

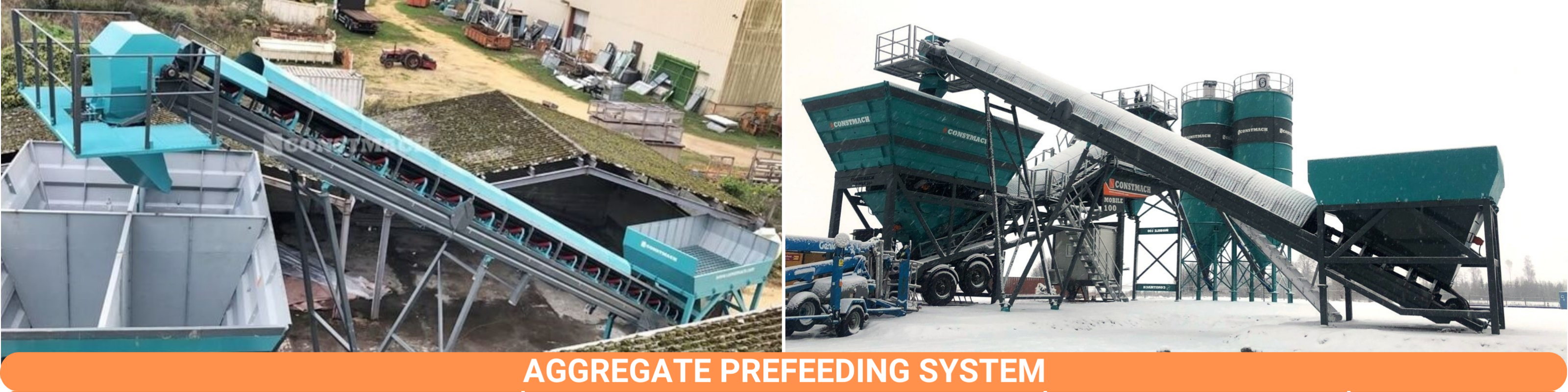

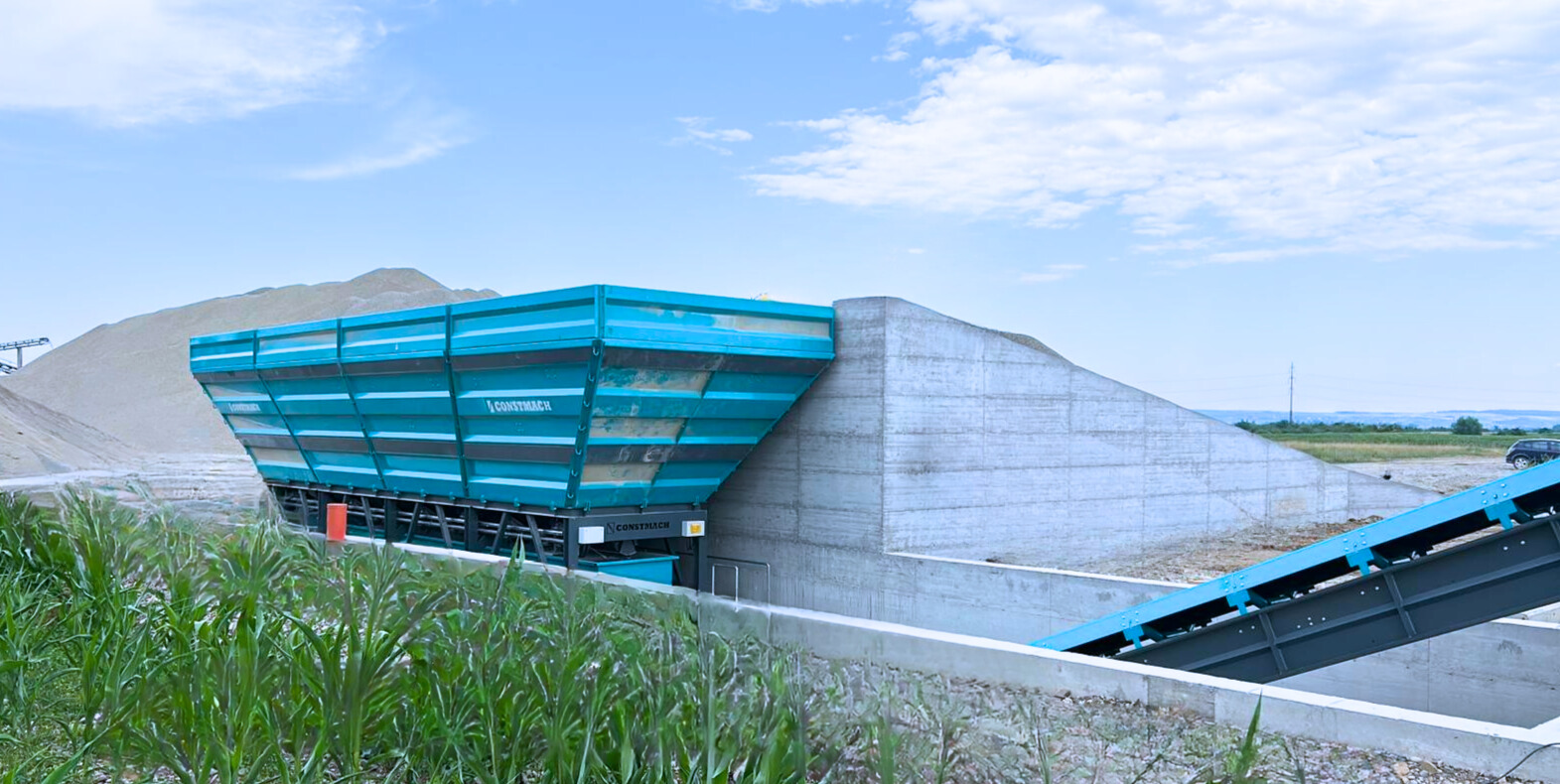

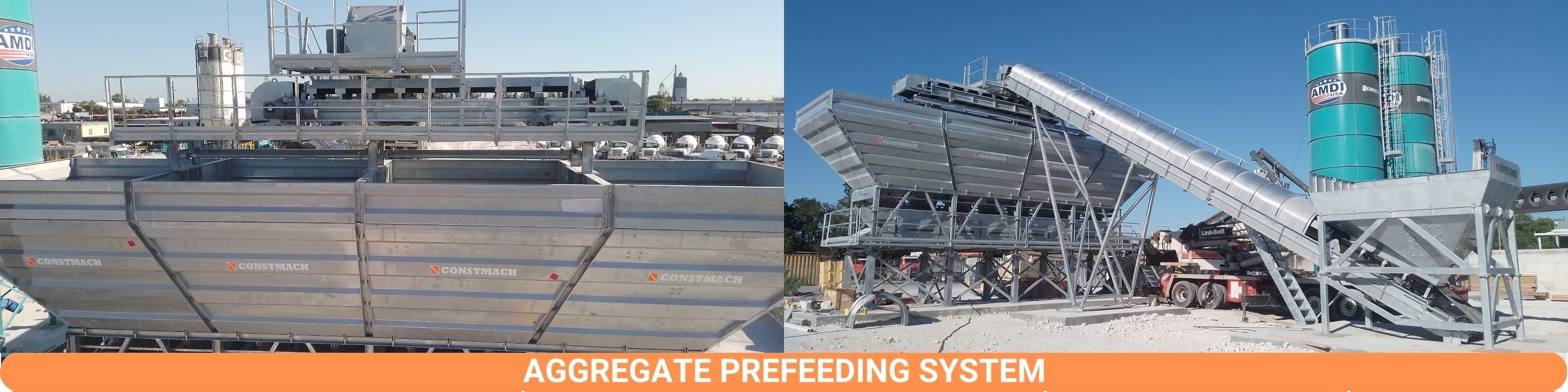

Aggregate pre-feeding systems are our alternative solutions to the loading ramps which are necessary for charging the hoppers by loaders. In case of using aggregate pre-feeding systems, requirement of loading ramp is removed.

Stationary 120 | Stationary Concrete Batching Plant | Constmach 5

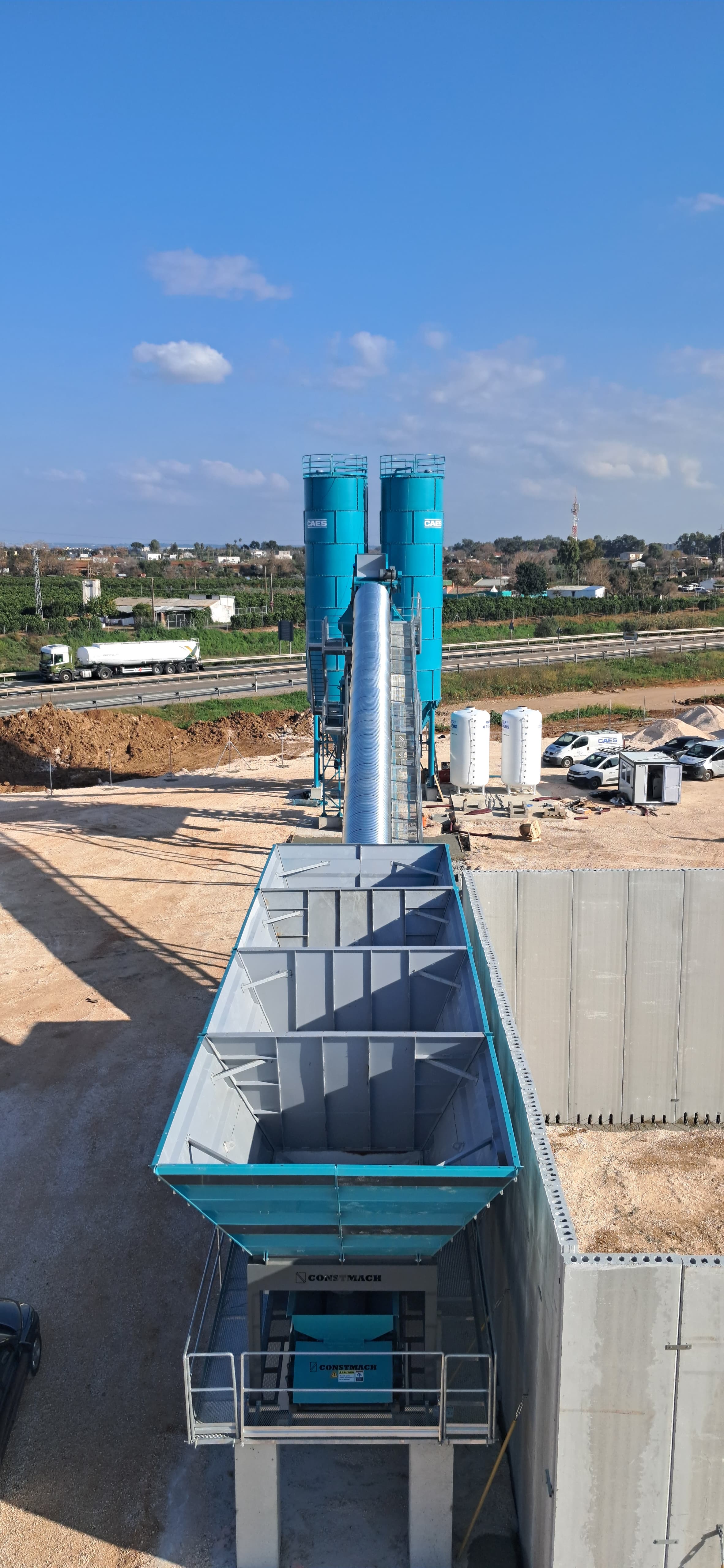

Different layouts and site plans for STATIONARY 120 concrete plant are applied according to the conditions of the field where the concrete plant is to be installed and in case of the field sizes are limited, aggregates is transferred by skip hoist system instead of belt conveyors.

STATIONARY 120 is equipped with high-tech automation system including top class SIEMENS & SCHNEIDER brand electronic components and PLC. The whole system is controlled through an advanced software which has sophisticated features and user friendly interface.

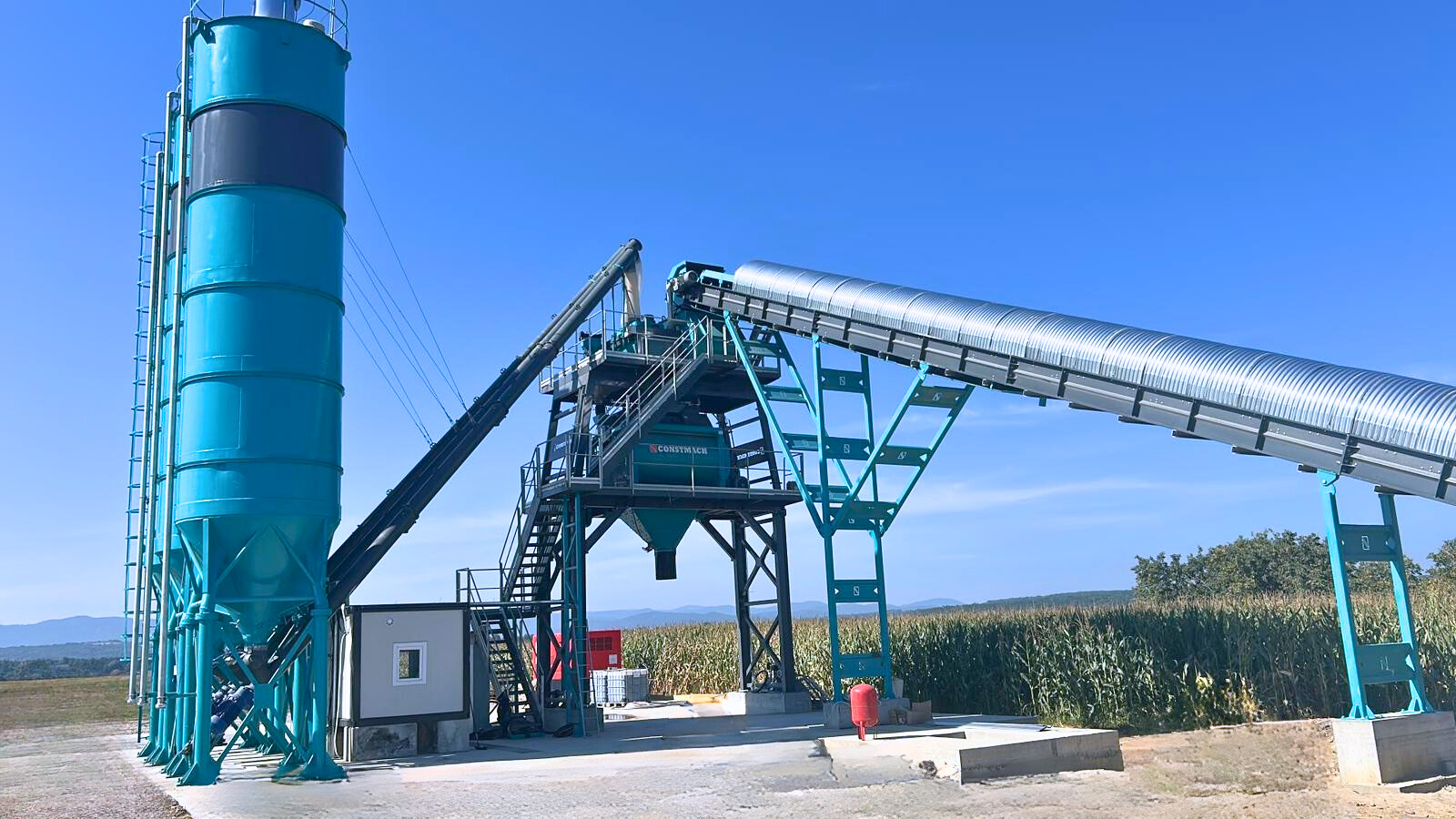

Stationary 120 | Stationary Concrete Batching Plant | Constmach 6

Stationary 120 Technical Specifications

MAIN VALUES OF THE PLANT


Production Capacity 120 m³/h
Weight 58 tonnes without cement silo
Total Motor Power 205 kW
Electric Generator Requirement 300 kVA
Mixer Options Twin Shaft
Required area to operate 700 m²


TECHNICAL SPECIFICATIONS


Aggregate Hopper Volume 4 x 30 m³
Aggregate Weighing Hopper 4.5 m³
Aggregate Weighing Conveyor 1.000 x 13.000 mm
Aggregate Transfer Conveyor 1.200 x 30.000 mm
Aggregate Stand-by Hopper 4.5 m³
Mixer Wet Concrete Volume 3 m³
Cement Weighing Hopper 1.800 kg
Water Weighing Hopper 1.000 lt
Additive Weighing Hopper 50 lt
Air Compressor 500 lt, 7.5 kW
Cement Silo Optional from 100 to 500 tonnes capacity.
Control Type FULL AUTOMATIC
Transport
Stationary 120 | Stationary Concrete Batching Plant |Transport
Stationary 120 | Stationary Concrete Batching Plant |Transport
