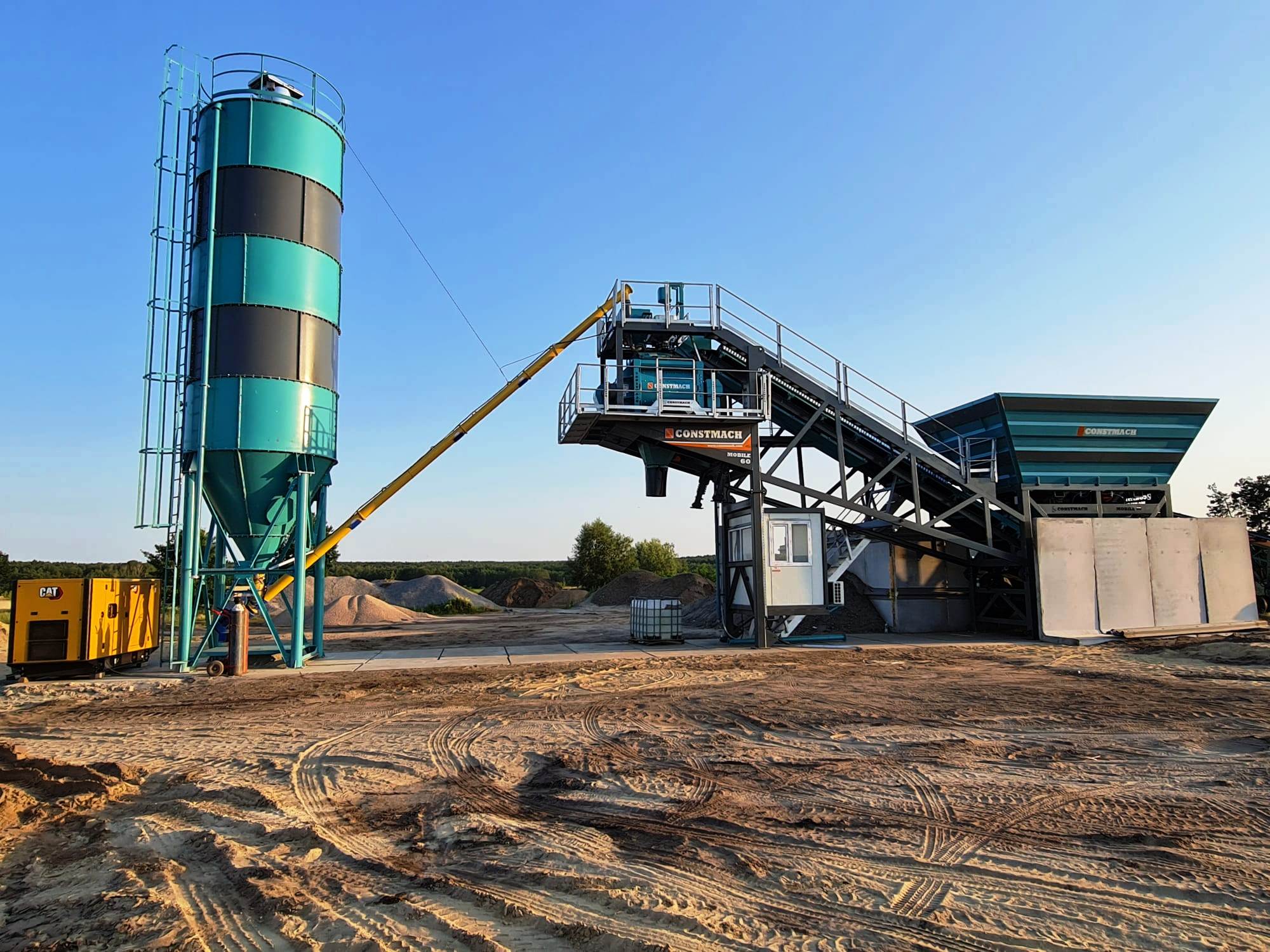

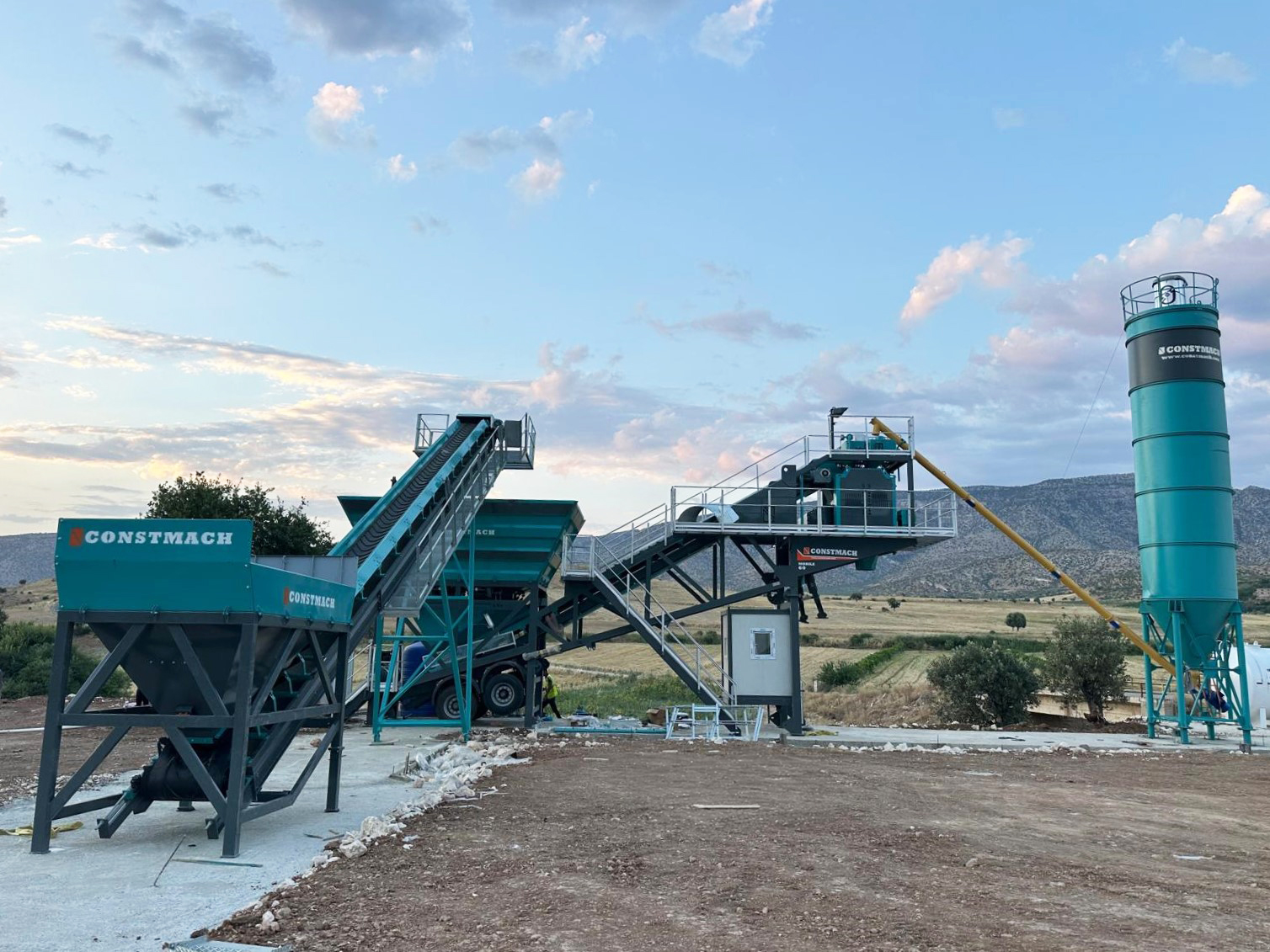

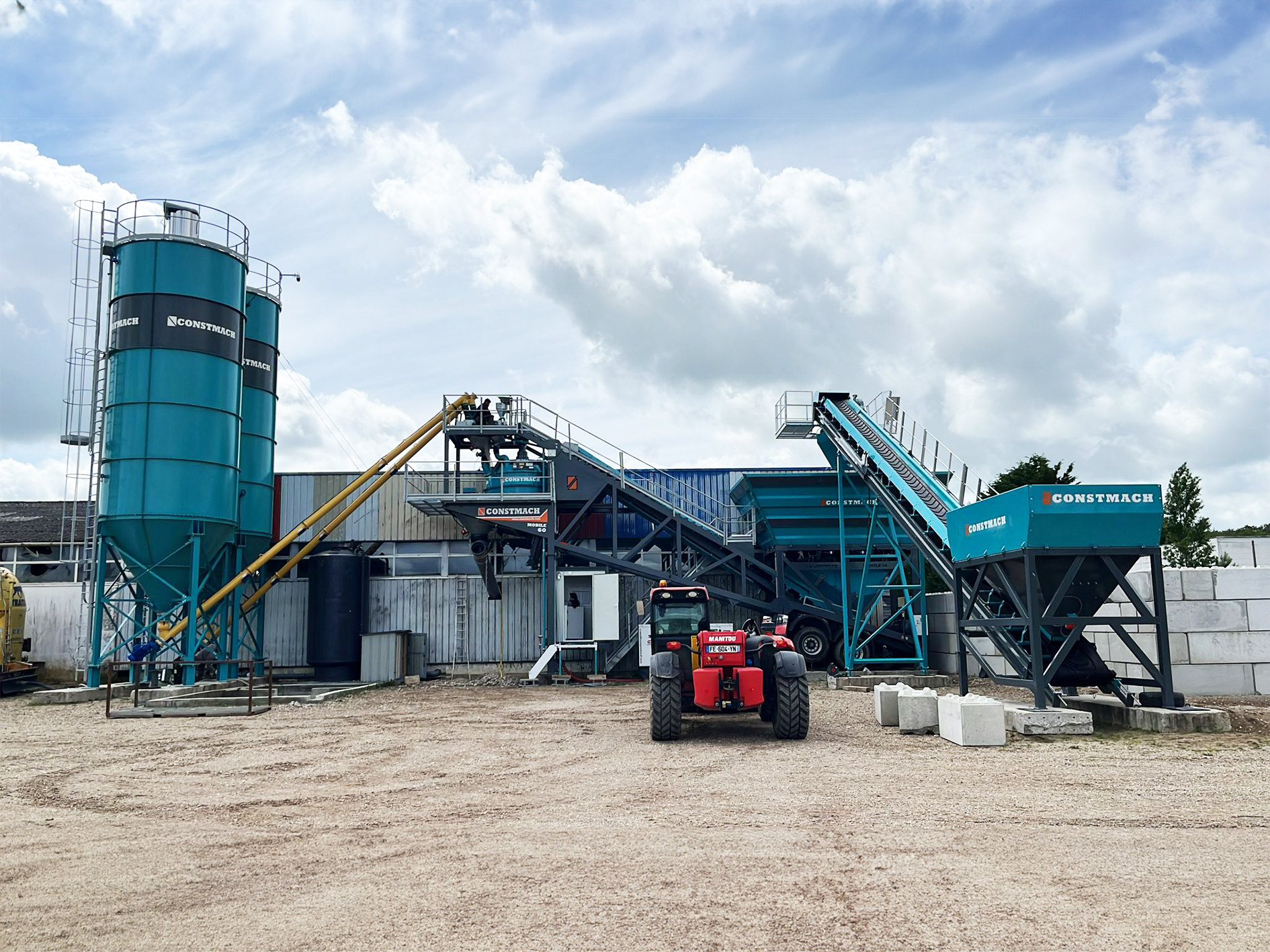

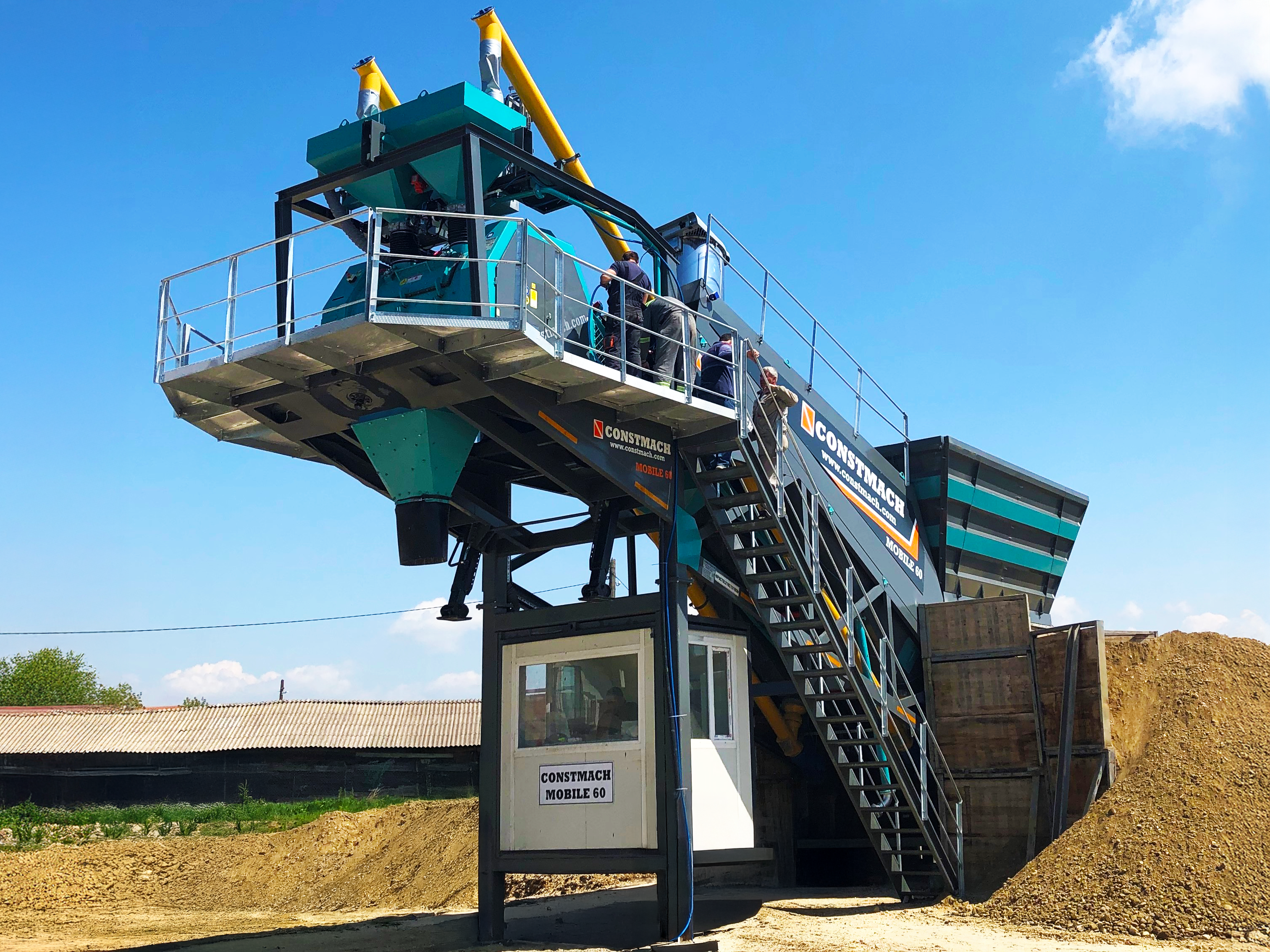

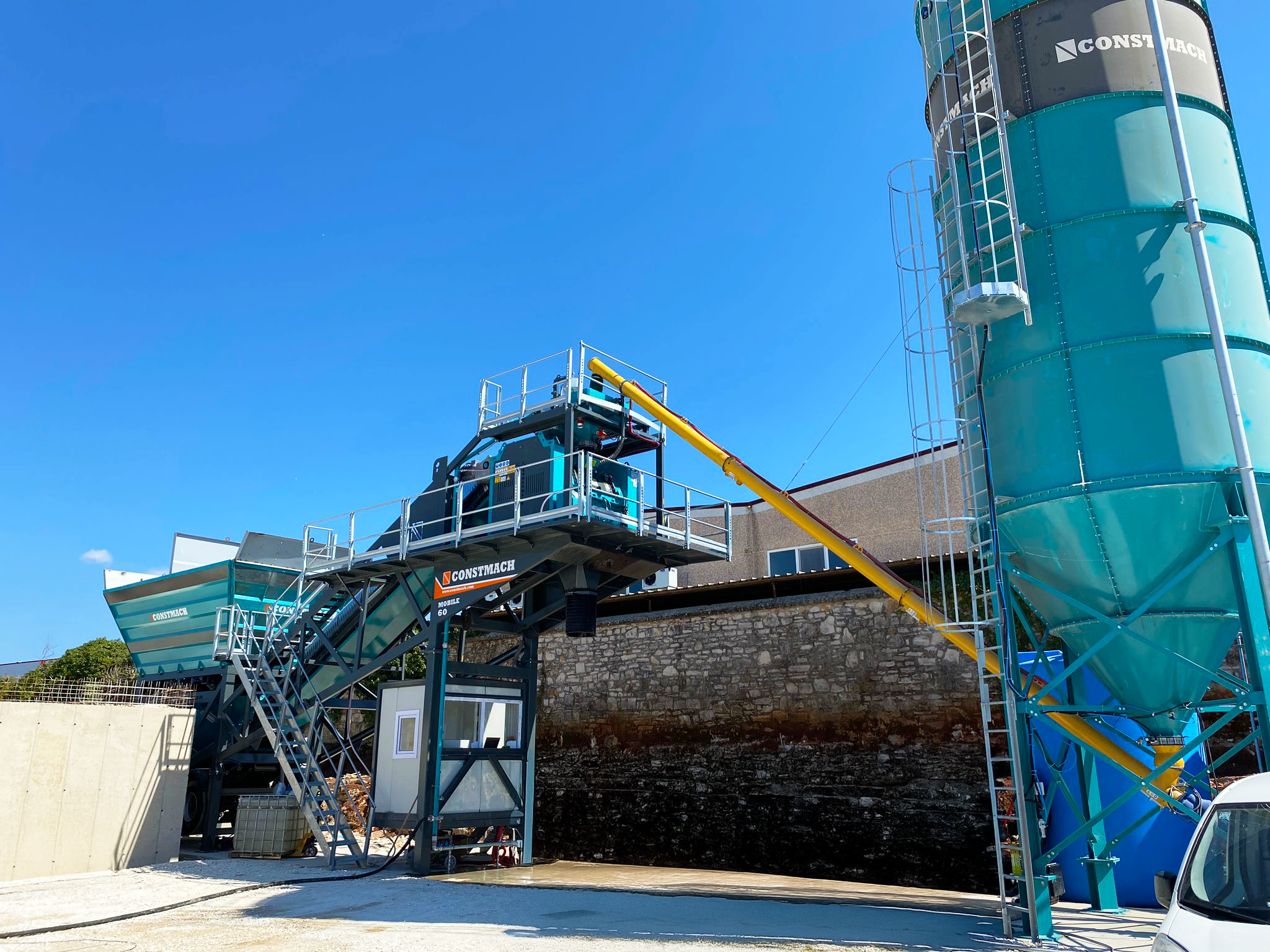

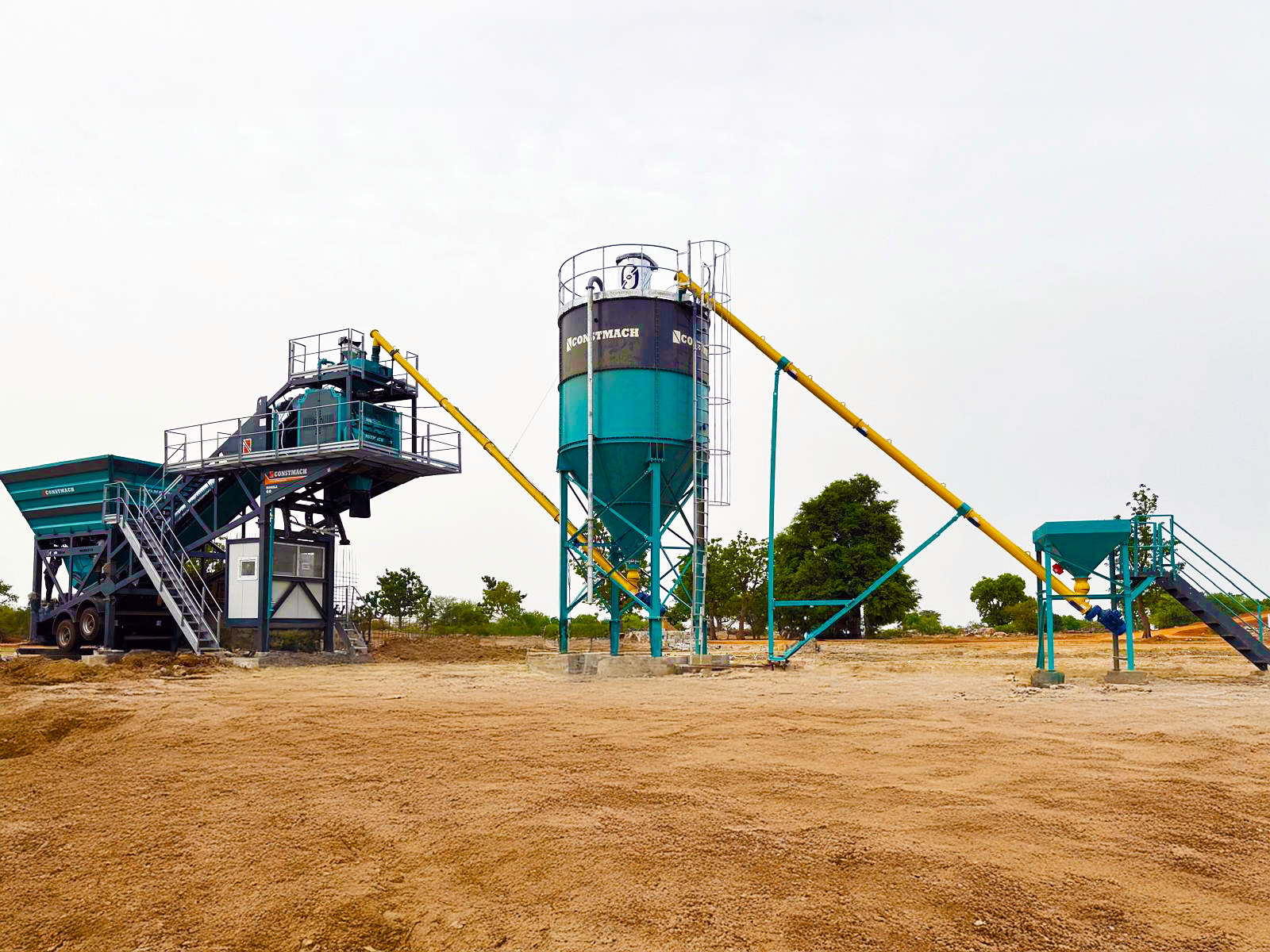

Mobile 60

CONSTMACH MOBILE 60 full automatic Mobile Concrete Batching Plant is a suitable solution for temporary needs with its features of rapid installation, advantage of starting production in a short time and minimum infrastructure necessity. MOBILE 60 mobile concrete plant has the features of being able to have all necessary equipments for concrete production, even a cement silo is located on a single wheeled mobile chassis and this offers easy transportation and rapid installation advantages to its users.

CONSTMACH MOBILE 60 mobile type Concrete batching plant requires a minimum site preparation. Just a flat ground that is capable to carry the total load of the plant is enough. Cement silos which are mounted to the chassis of mobile plants have 33 tonnes stock capacity. In case of necessity, external cement silos which have stock capacity from 50 to 500 tonnes can be also used. External type cement silos have always full steel legs to remove the necessity of concrete legs building.

Twin shaft, single shaft, pan or planetary type mixers can be used in MOBILE 60 concrete plant so that it could be used for different purposes such as ready mixed concrete, dry mixed concrete, precast concrete production etc.

In case of using of mobile aggregate pre-feeding conveyors with our mobile concrete plants, necessity of construction of loading ramp is removed, thus the jobsite infrastructure investment is minimized.

MOBILE 60 is equipped with high-tech automation system including top class SIEMENS & SCHNEIDER brand electronic components and PLC. The whole system is controlled through an advanced software which has sophisticated features and user friendly interface.

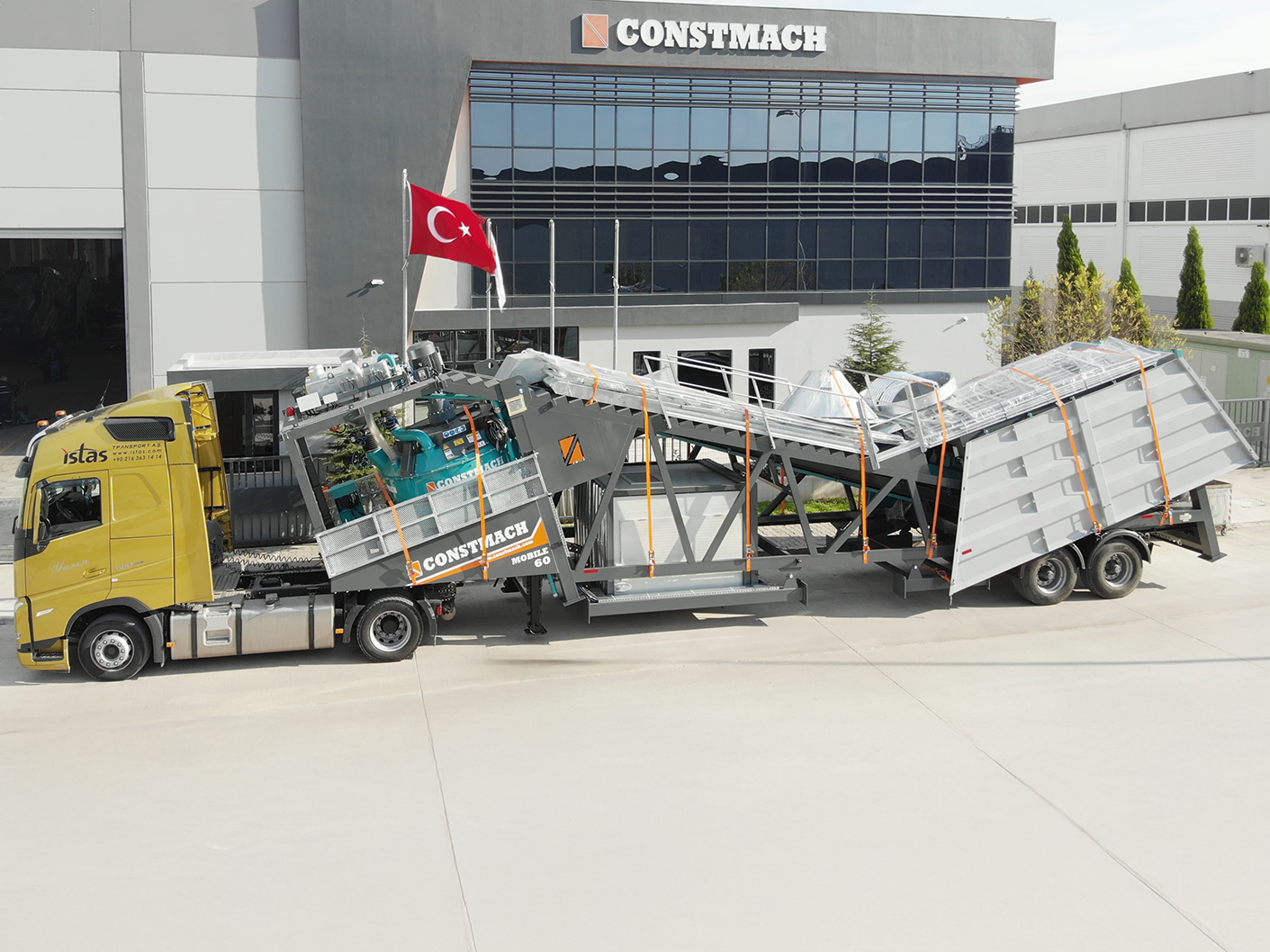

Overall dimensions of MOBILE 60 are determined according to international road transport regulations and it is transported between jobsites easily.

Mobile 60 Technical Specifications


Production Capacity 60 m³/h
Sizes in Transport Position 16 (L) x 2.8 (W) x 4.3 (H) meters
Weight 23 tonnes
Total Motor Power 85 kW
Required Electric Generator 110 kVA
Mixer Options Pan - Single Shaft - Planetary
Required area to operate 200 m²


Aggregate Hopper Volume 4 x 10 m³
Aggregate Weighing Hopper 1.5 m³
Aggregate Transfer Conveyor 800 x 12.000 mm
Mixer Wet Concrete Volume 1 m³
Cement Weighing Hopper 600 kg
Water Weighing Hopper 300 lt
Additive Weighing Hopper 20 lt
Air Compressor 300 lt, 5.5 kW
Cement Silo Option 1 Internal Type, embedded on the body,27 Tonnes capacity
Cement Silo Option 2 External Type. Optional from 50 to 200 tonnes capacity.
Mobile 60 Video
Mobile 60 General Layout
