Twin Shaft Mixer
CONSTMACH Twin Shaft Mixers offer a robust and compact design with thorough mixing of all aggregates. With its large output capabilities from 1 m³ to 6 m³ and fast mixing time, CONSTMACH Twin Shaft mixer is ideal for use in the ready mix precast, block, paver and dam applications. The art in concrete mixing is to make a batch of concrete quickly and completely. CONSTMACH Twin Shaft Mixers’ powerful compulsory spiral mixing action throws particles from each side of the mixer towards the center, where they combine; the water is forced through powerful jets into the mix, where it is absorbed completely, allowing the cement slurry to coat all the aggregate particles uniformly, forming the strongest concrete.
Twin Shaft Mixer Technical Specifications
| MODEL OF MIXER | |||||
|---|---|---|---|---|---|
| Charging Volume | 1.500 lt | 3.000 lt | 4.500 lt | 6.000 lt | 7.500 lt |
| Fresh Concrete Volume | 1.250 lt | 2.500 lt | 3.750 lt | 5.000 lt | 6.250 lt |
| Compacted Concrete Volume | 1.000 lt | 2.000 lt | 3.000 lt | 4.000 lt | 5.000 lt |
| Motor Power | 37 kW | 2 x 37 kW | 2 x 55 kW | 2 x 75 kW | 2 x 90 kW |
| Side Body Wearing Plates | 15 mm Hardox | 15 mm Hardox | 20 mm Hardox | 25 mm Ni-Hard | 25 mm Ni-Hard |
| Main Body Wearing Plates | 15 mm Ni-Hard | 20 mm Ni-Hard | 20 mm Ni-Hard | 25 mm Ni-Hard | 30 mm Ni-Hard |
| Mixing Arm Wearing Plates | 25 mm Ni-Hard | 30 mm Ni-Hard | 30 mm Ni-Hard | 30 mm Ni-Hard | 30 mm Ni-Hard |
| Automatic Lubrication System is available on all mixer models. | |||||
| Hydralulic Discharge Door | |||||
| Maintanence Door Safety Switch | |||||

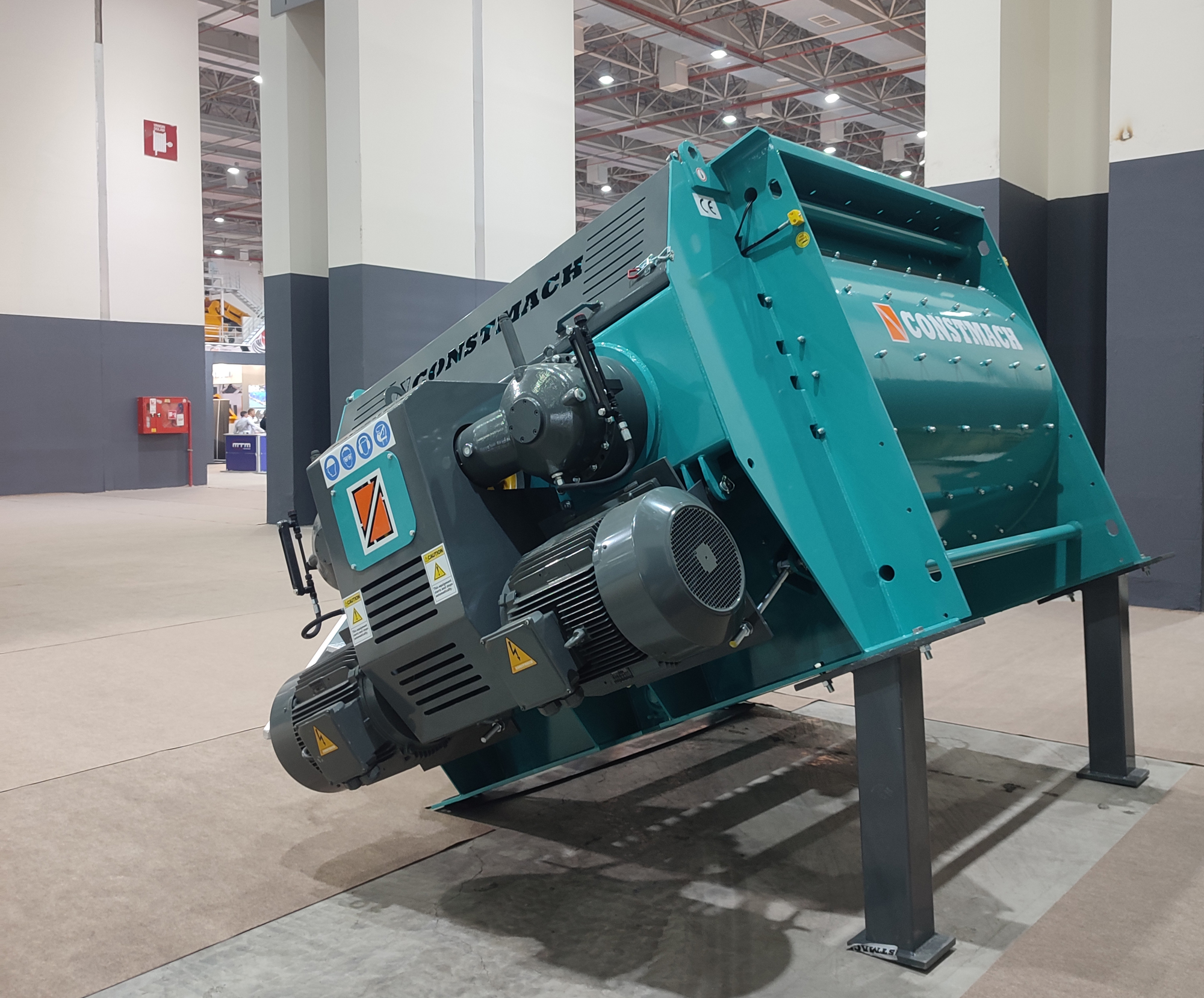

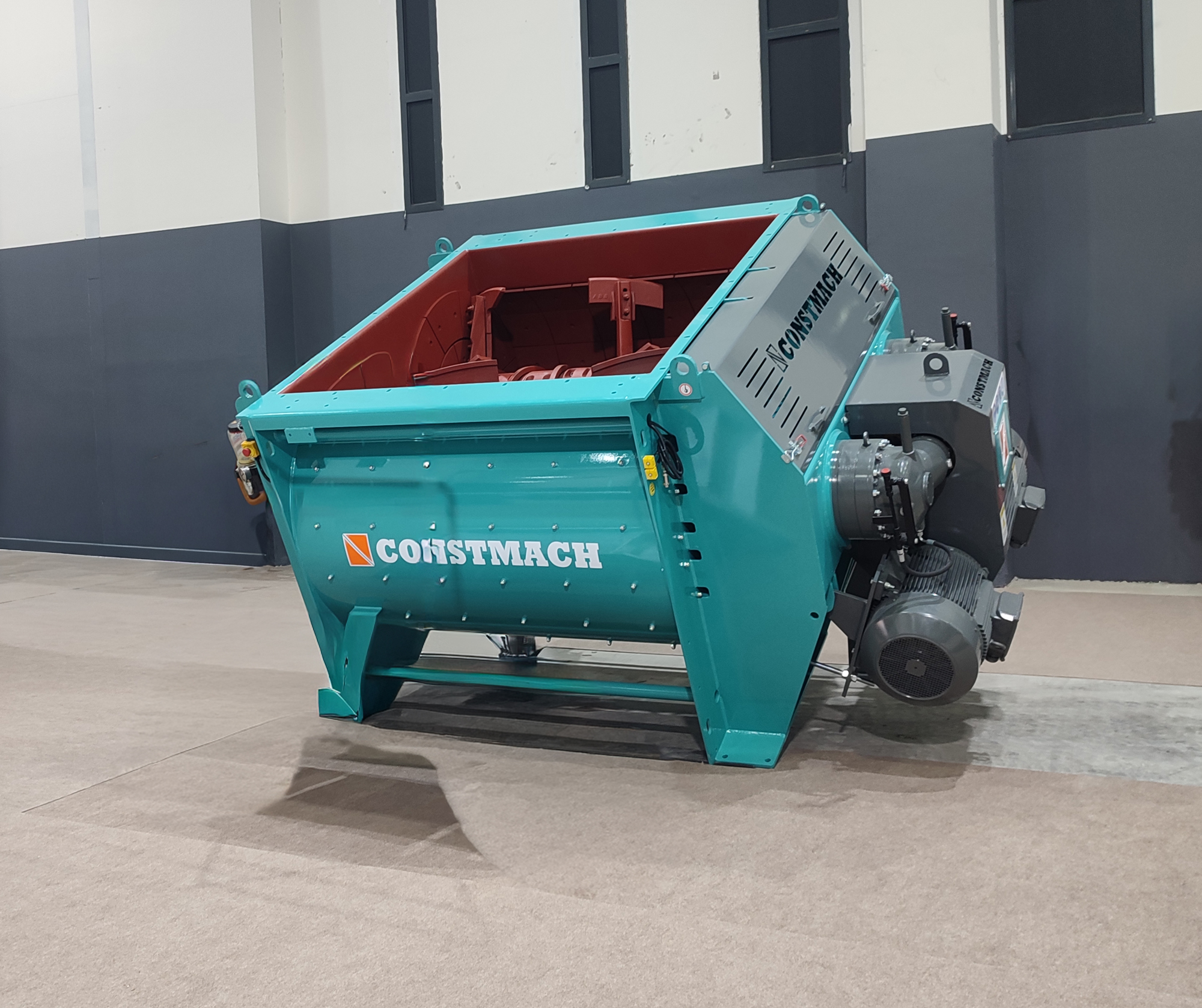

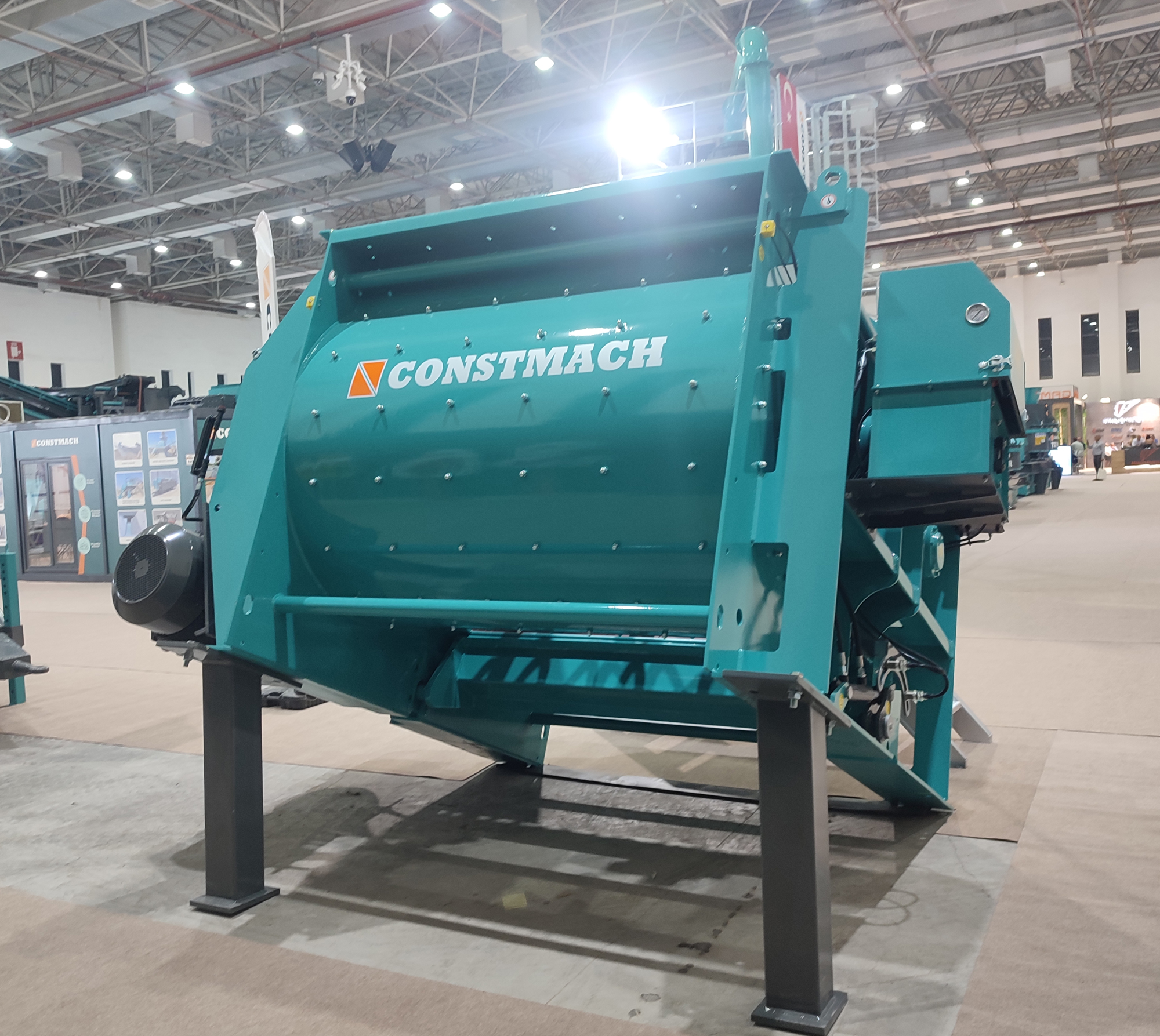

Twin Shaft Mixer Gallery
You can examine some photos of the product named Twin Shaft Mixer taken in our established facilities. For detailed information and references, you can contact our sales team by calling back or filling out the request form.
Transport
Twin Shaft Mixer Transport
Twin Shaft Mixer Video
Twin Shaft Mixer General Layout
