BS-25 is designed and developed to offer definite solutions to the most frequent problems in the concrete block making industry. BS-25 is always one step ahead between its rivals with its versatile concrete block producing capabilities. Multi-layer concrete block machines are incapable of producing various concrete blocks (curbstones, hollow blocks etc); but with its versatile single-layer structure, BS-25 is able to produce pavers, curbstones, hollow blocks etc. by installing appropriate molds on the machine. The fully scalable structure of the BS-25 plant ensures fulfilling its investors' requirements economically and rapidly, especially when investors demand more capacity.
With the PLC automation software which is developed by CONSTMACH R&D engineers, the whole BS-25 plant needs only one supervisor personnel to operate. The whole plant operates fully automatic so production quality for each cycle and production capacity for each working shift are maintained and stabilized. Automation system also makes it possible to operate the plant in various speeds. CONSTMACH engineers evaluated the traditional PLC control panel to a compact and simplified solution. This recently developed control panel benefits the latest improvements in PLC technology and offers a touch-screen LCD monitor with an easy to use graphical user interface. Automation system also provides an archiving and reporting tool. Supervisors can access archived production data anytime; this data can also be printed out with a dot-matrix and/or inkjet printer connected to the system.
Remote access capabilities are optionally provided with the automation system. Supervisors can access to the control system via any access point over LAN and/or internet. Any failure on the system can be diagnosed and firmware update can be performed through remote access connection.

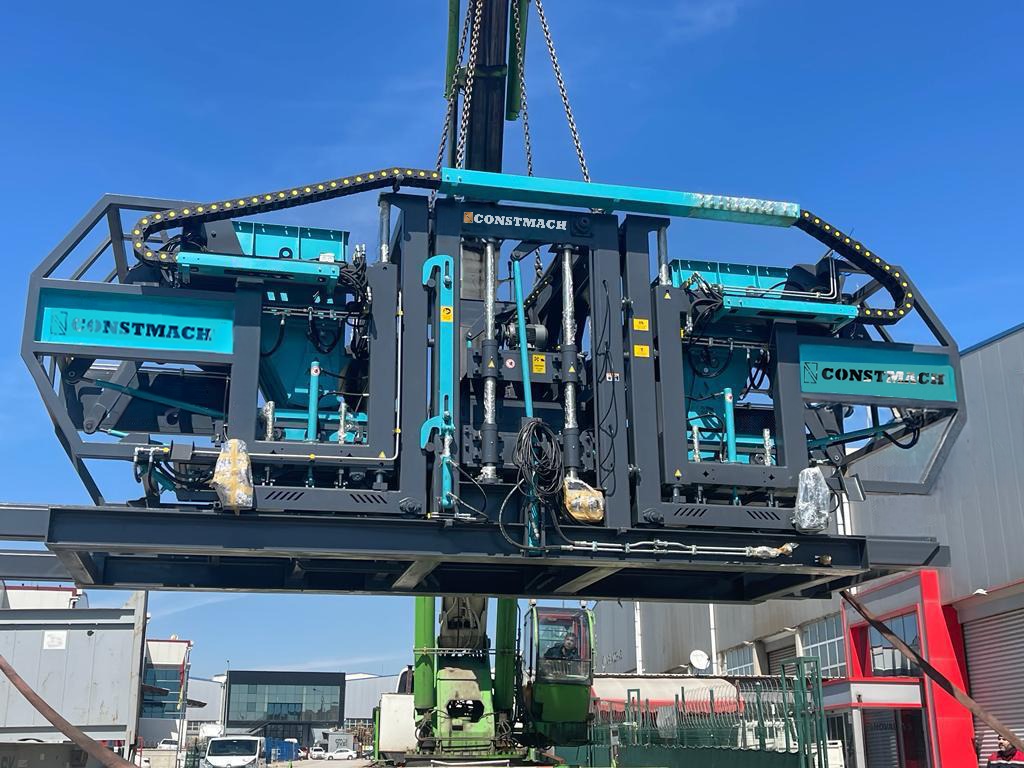

You can see the general layout, transport information and photos of Concrete Block Machines - BS-25 by clicking the related tabs and you can request a quotation by clicking REQUEST A QUOTE tabs.

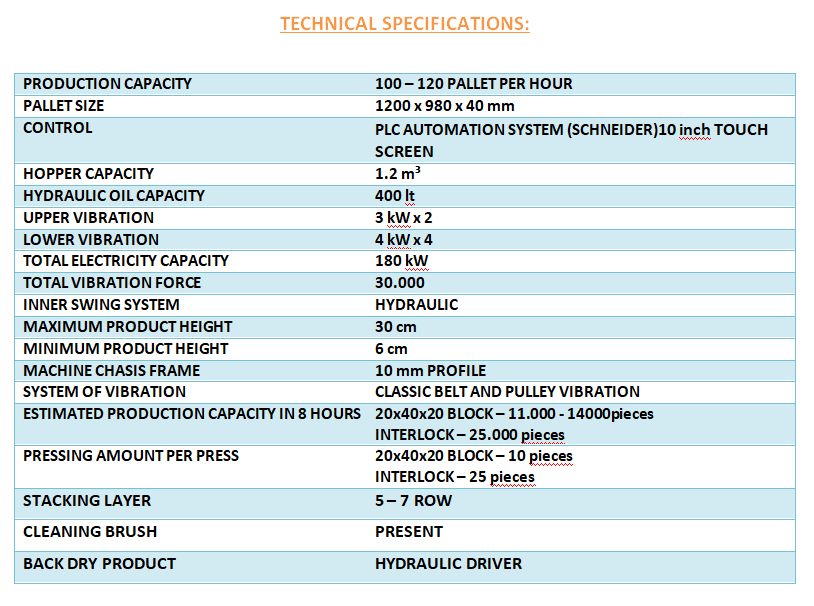

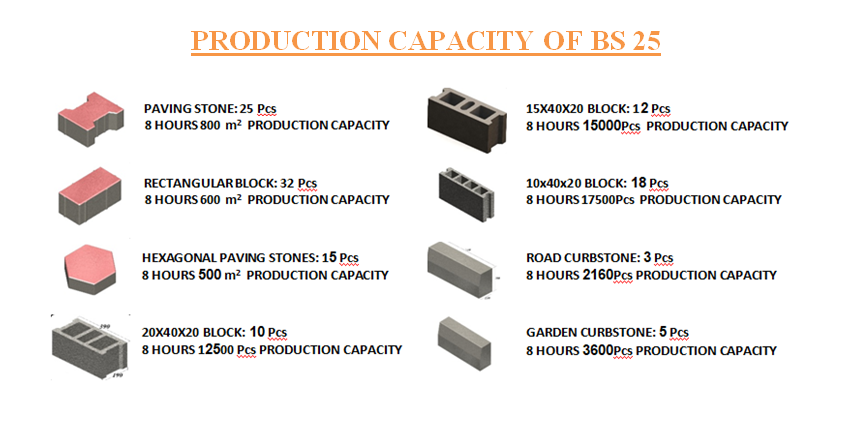

İnterlock pieces and printing time per pallet | 25 pcs interlock / 30 sec | |
Block pieces and printing time per pallet | 10 pcs block / 23 sec | |
Pump Power | 48 lt/min Efficiency: 0,98 | |
Hydraulic cooler capacity | 90 lt/min, 0,18 kw | |
Hydraulic system brand and oil capacity | Tellus 46, 180 lt | |
Machine working hydraulic pressure | 120 bar | |
Vibration compress strength | 13 000 kgf | |
Machine size and weight | 2.2 x 7 x 2.5 9000 kg | |
|
Pump Power | 21 lt/min x2pcs |
Robot size and weight | 1,45 x 3 x 1,5m 1500 kg | |
|
PLC and Moduls and screen | Schneider (France) 7 inch touch screen |
Termique and condactor brand | Schneider (France) Weid Moeller (Germany) | |
Size | 8 m length, 70 cm width, 1000 kg | |
Mixer Capacity | 500 dm³ | |
Mixing product weight and mix time | 800 kg sand 130 kg cement + 55 kg water, Average 2,5 minute | |
Corosion conservation sheet iron | Thickness: 15 mm, Model: st52 steel | |
Mixer motor power and moment | 15 kw, 40 rpm x2 pcs 4500 Nm | |
Size | 10 m length, 60 cm width, 1000 kg weight | |
Hopper capacity and weight | 10m³ x 3 pcs 4500 kg | |
Valve type and power | Vibration system, 0,5 kw x 3 pcs | |
Band lenght | 10 m Band width: 70cm Weight: 1400 kg | |
Load tank weight equipments | 4x pcs 1 lt capacity | |
Silo capacity and weight | 45 t 5500 kg | |
Silo size | Diameter for container 2250 x 11500 mm | |
Cement weight capacity | 300 kg | |
Loadcell brand | ESIT 1 pcs 500 kg loadcell | |
Safety valve and 24 m² open area filter (airjetplus) |
