Paving Stone
- Quantity
- 36 pcs per press
- Capacity
- 1000 m² in 8 hours

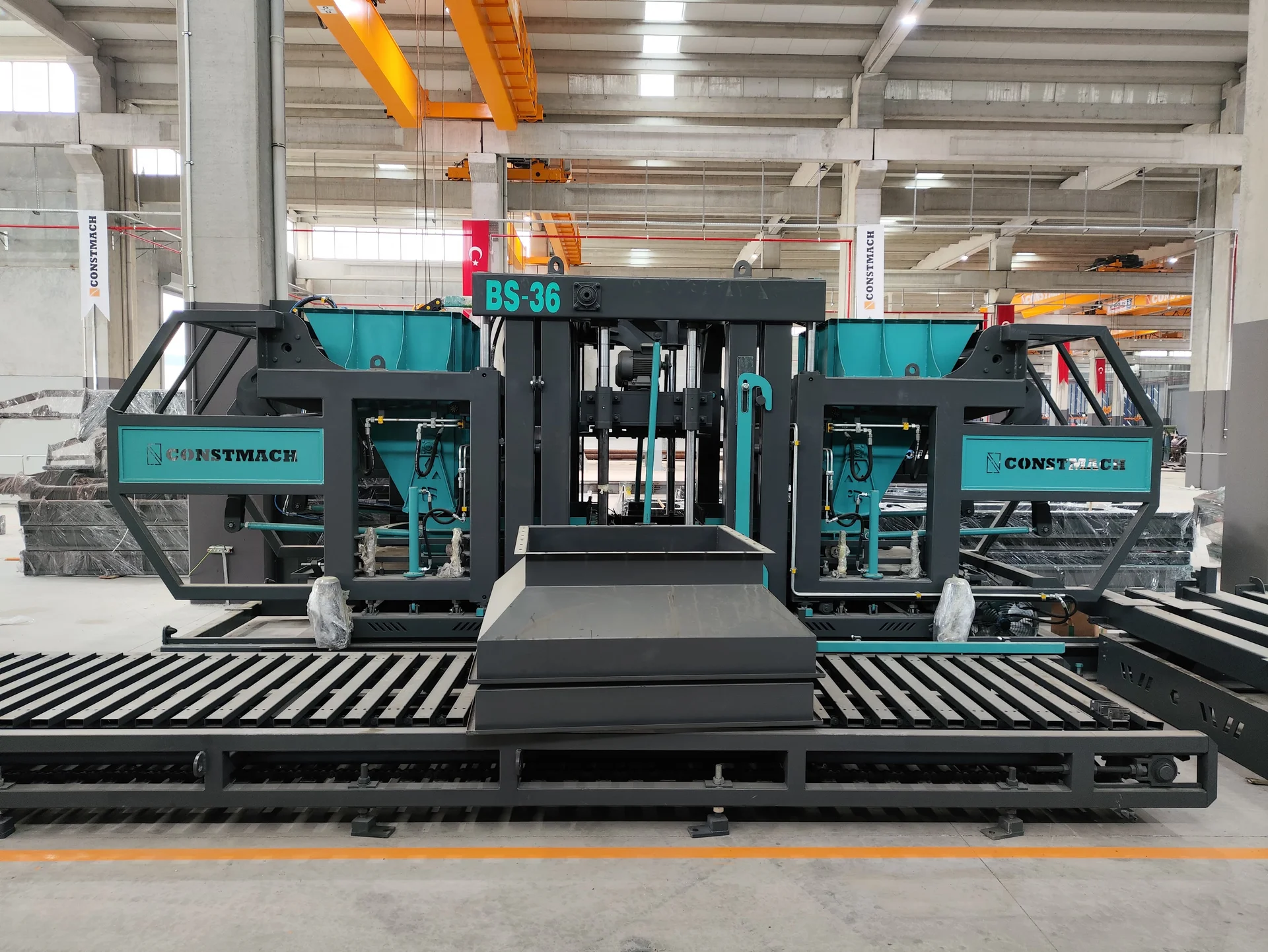

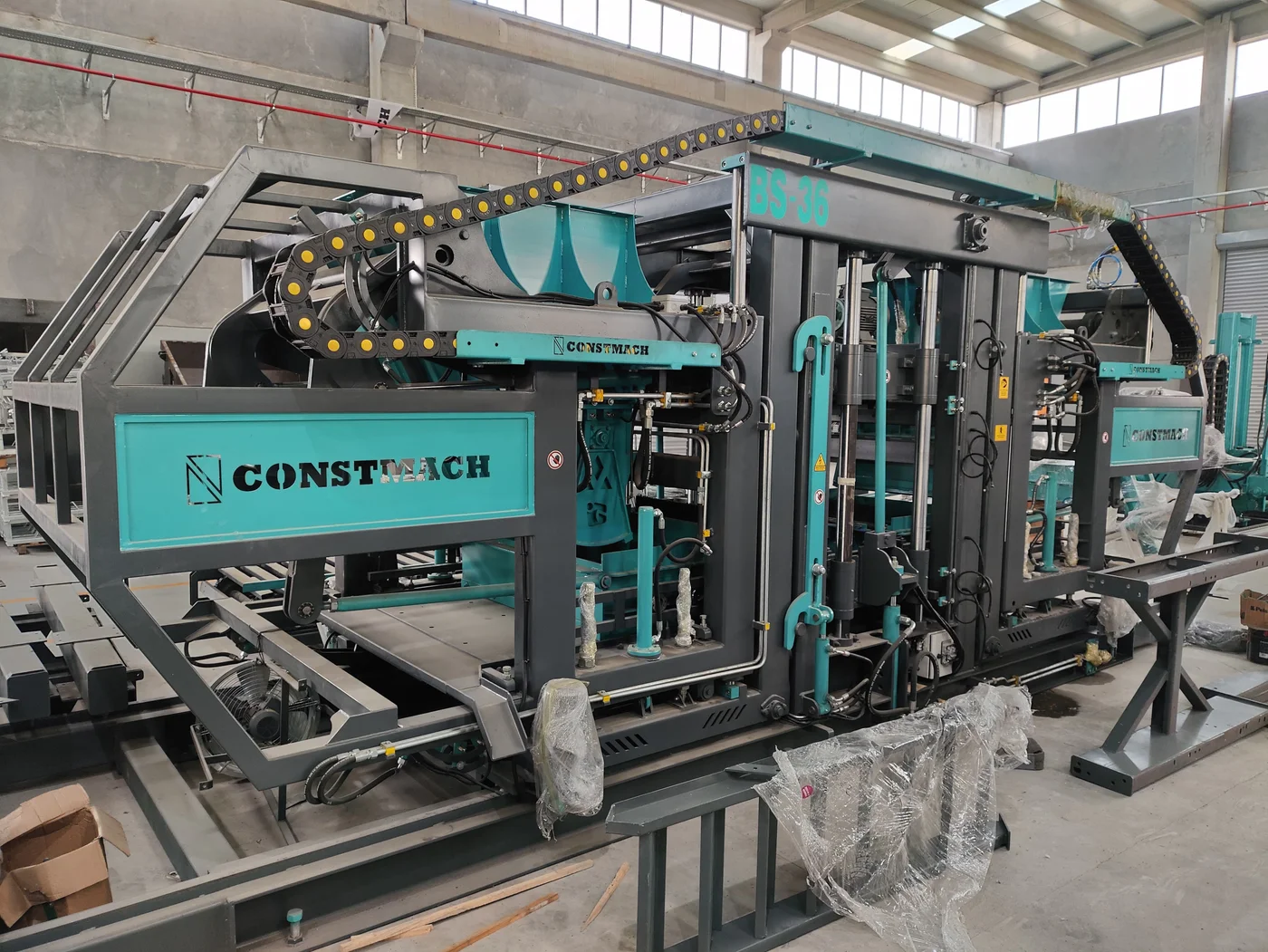

BS-36 | Concrete Block Making Machine
These machines operate on a hydraulic system within a pressure range of 120-150 bar. This machine produces 15 Pcs of blocks of size 20×40×20 cm and 36 Pcs of paving stones in each pressing cycle. Wooden pallets are used for production.
The concrete is pressed into the molds and then pressed onto the pallets. Products produced in the same manner are left to dry on the production wooden pallets.
The control panel developed by CONSTMACH engineers ensures ease of machine operation through sensors. The automation system allows for daily production storage. The control panel is user-friendly and provides the necessary timing for different types of blocks and paving stones.
Machine Features:
A+ (A Plus) Energy-saving products
EFF3 Class electric motors
Free spare parts with the machine
CE Declaration for European standards
Use of materials compliant with DIN and TSEK standards
Easy-to-use program selection
Automatic/Manual selection
Stop, wait, and resume production from where the machine stopped
Forklift option available
Troubleshooting via online remote option
Compliance with low voltage directives
Use of safe brand raw materials
Trained personnel and "HL" product models
Fast service and 2-year Machine and spare parts warranty
7/24 pre-sale and after-sale service
Certification at the end of the training period
Rectangular Block
- Quantity
- 55 pcs per press
- Capacity
- 1050 m² in 8 hours
Hexagonal Paving Stones
- Quantity
- 15 pcs per press
- Capacity
- 800 m² in 8 hours
20x40x20 Block
- Quantity
- 15 pcs per press
- Capacity
- 18.000 pieces in 8 hours
15x40x20 Block
- Quantity
- 19 pcs per press
- Capacity
- 22.800 pieces in 8 hours
10x40x20 Block
- Quantity
- 23 pcs per press
- Capacity
- 27.600 pieces in 8 hours
Road Curbstone
- Quantity
- 4 pcs per press
- Capacity
- 2.800 pieces in 8 hours
Garden Curbstone
- Quantity
- 12 pcs per press
- Capacity
- 8.600 pieces in 8 hours
BS-36 Technical Specifications
Production Capacity by Product
| Paving Stone | 36 pcs per press; 1000 m² in 8 hours |
|---|---|
| Rectangular Block | 55 pcs per press; 1050 m² in 8 hours |
| Hexagonal Paving Stones | 15 pcs per press; 800 m² in 8 hours |
| 20x40x20 Block | 15 pcs per press; 18.000 pieces in 8 hours |
| 15x40x20 Block | 19 pcs per press; 22.800 pieces in 8 hours |
| 10x40x20 Block | 23 pcs per press; 27.600 pieces in 8 hours |
| Road Curbstone | 4 pcs per press; 2.800 pieces in 8 hours |
| Garden Curbstone | 12 pcs per press; 8.600 pieces in 8 hours |
Technical Specifications
| Production Capacity | 120 – 150 pallets per hour |
|---|---|

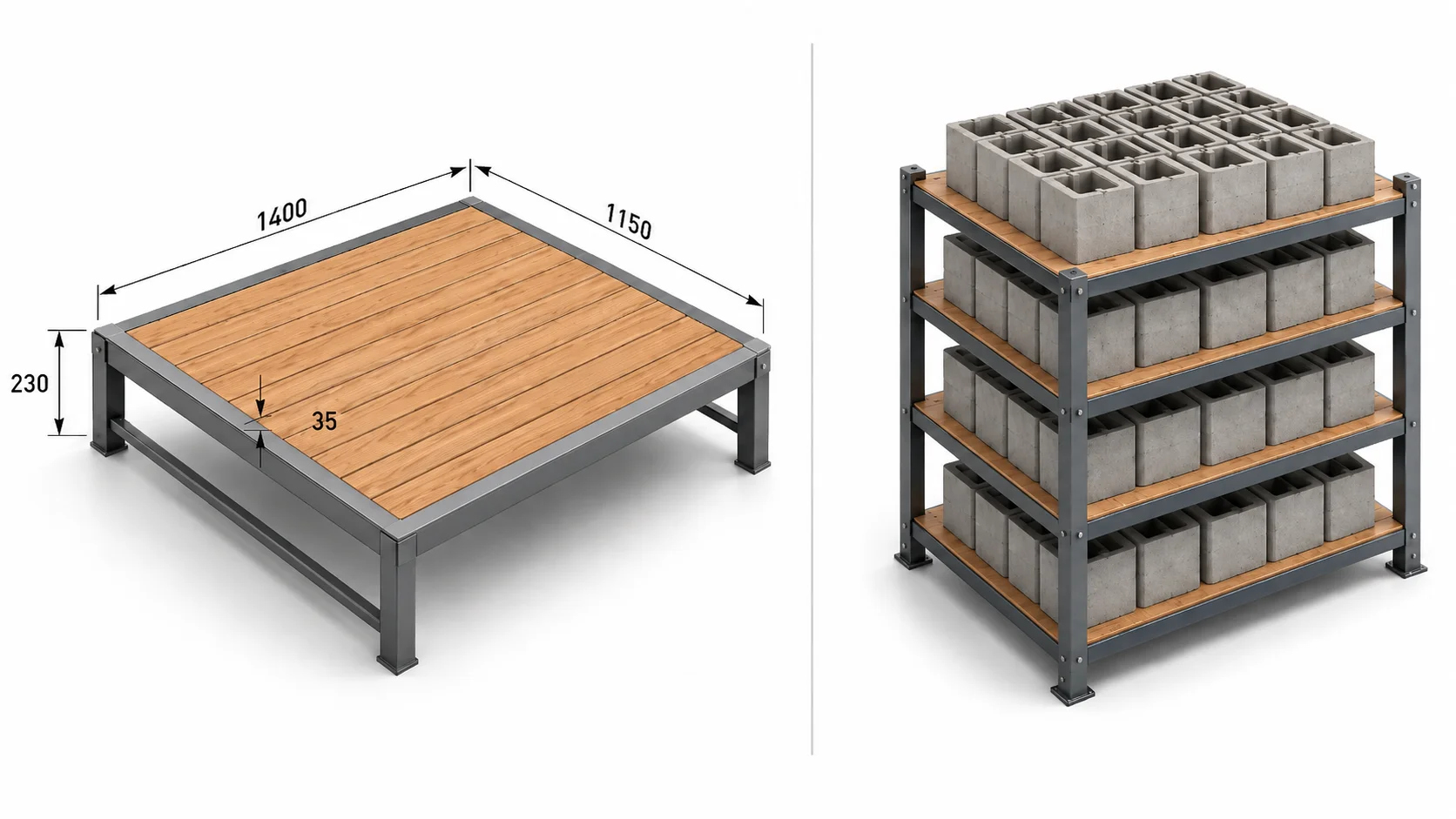

| Pallet Size | 1400 x 1150 x 40 mm |
| Control | PLC Automation System (Schneider), 10 inch touch screen |
| Hopper Capacity | 1.8 m³ |
| Hydraulic Oil Capacity | 600 lt |
| Upper Vibration | 3 kW x 2 |
| Lower Vibration | 4 kW x 6 |
| Total Electricity Capacity | 250 kW |
| Total Vibration Force | 30.000 |
| Inner Swing System | Hydraulic |
| Maximum Product Height | 30 cm |
| Minimum Product Height | 6 cm |
| Machine Chassis Frame | 10 mm Profile |
| System of Vibration | Classic Belt and Pulley Vibration |
| Estimated Production Capacity in 8 Hours | 20x40x20 block – 15.000 - 18.000 pieces; interlock – 36.000 pieces |
| Pressing Amount per Press | 20x40x20 block – 15 pieces; interlock – 36 pieces |
| Stacking Layer | 5 – 7 Rows |
| Cleaning Brush | Present |
| Back Dry Product | Hydraulic Driver |
| Pump Power | 7.5 kW, 40 lt/min |
| Profile Propulsion Power | 3 kW, 150 rpm |
| Rotational Power | 1.1 kW, 22 rpm |
| Chassis | 100 x 150 x 5 |
| Pallet Size | 1400 x 1150 x 40 mm |

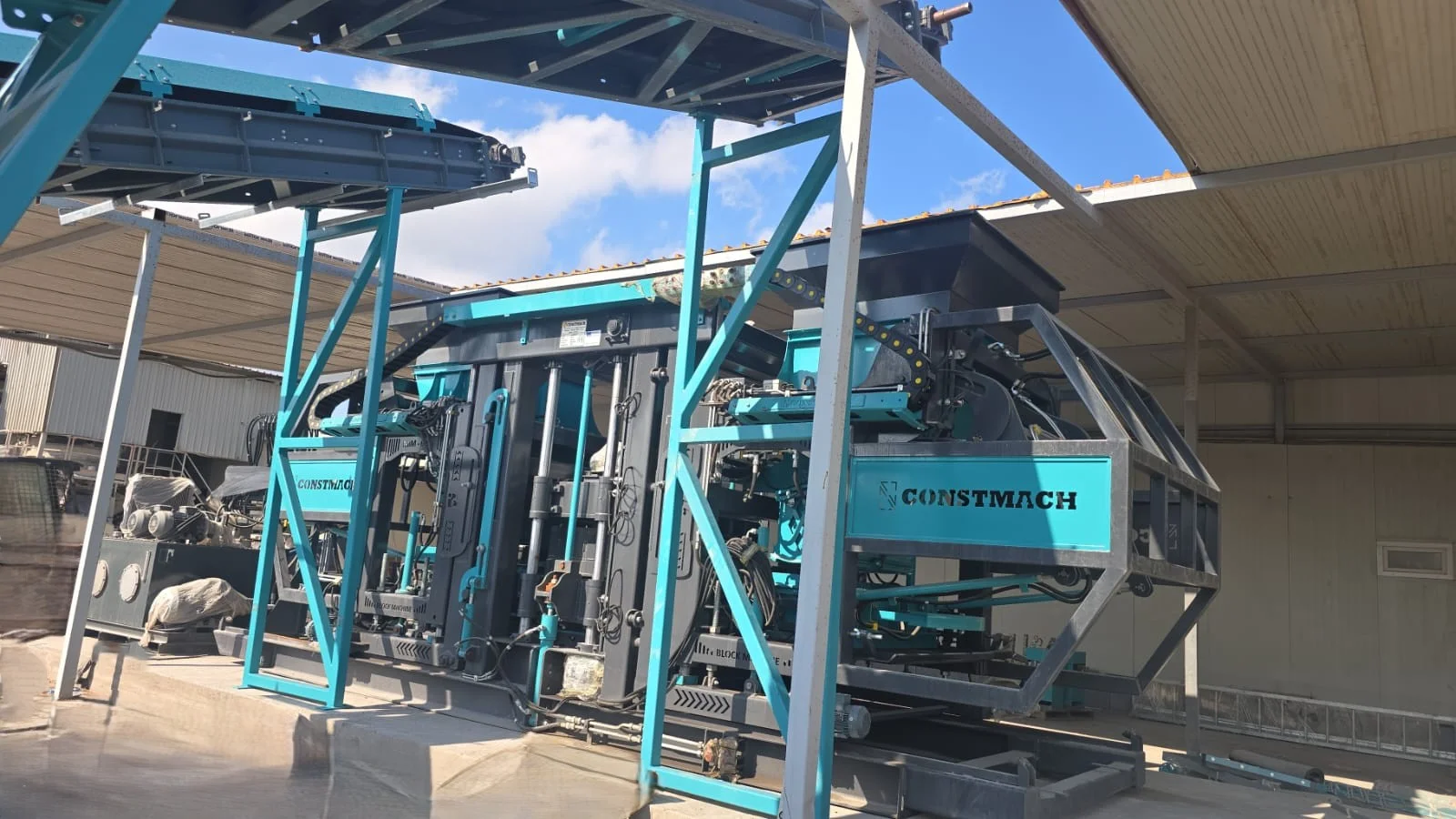

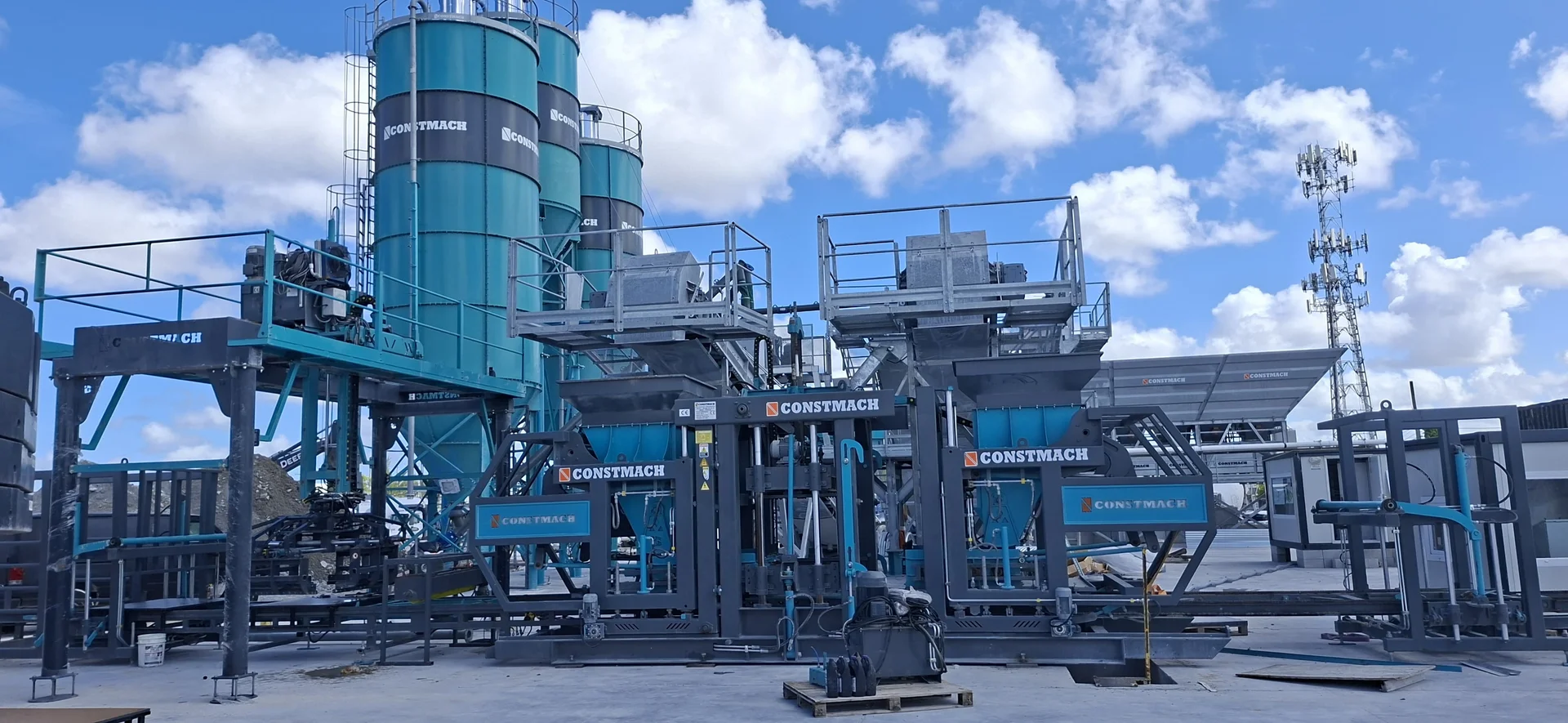

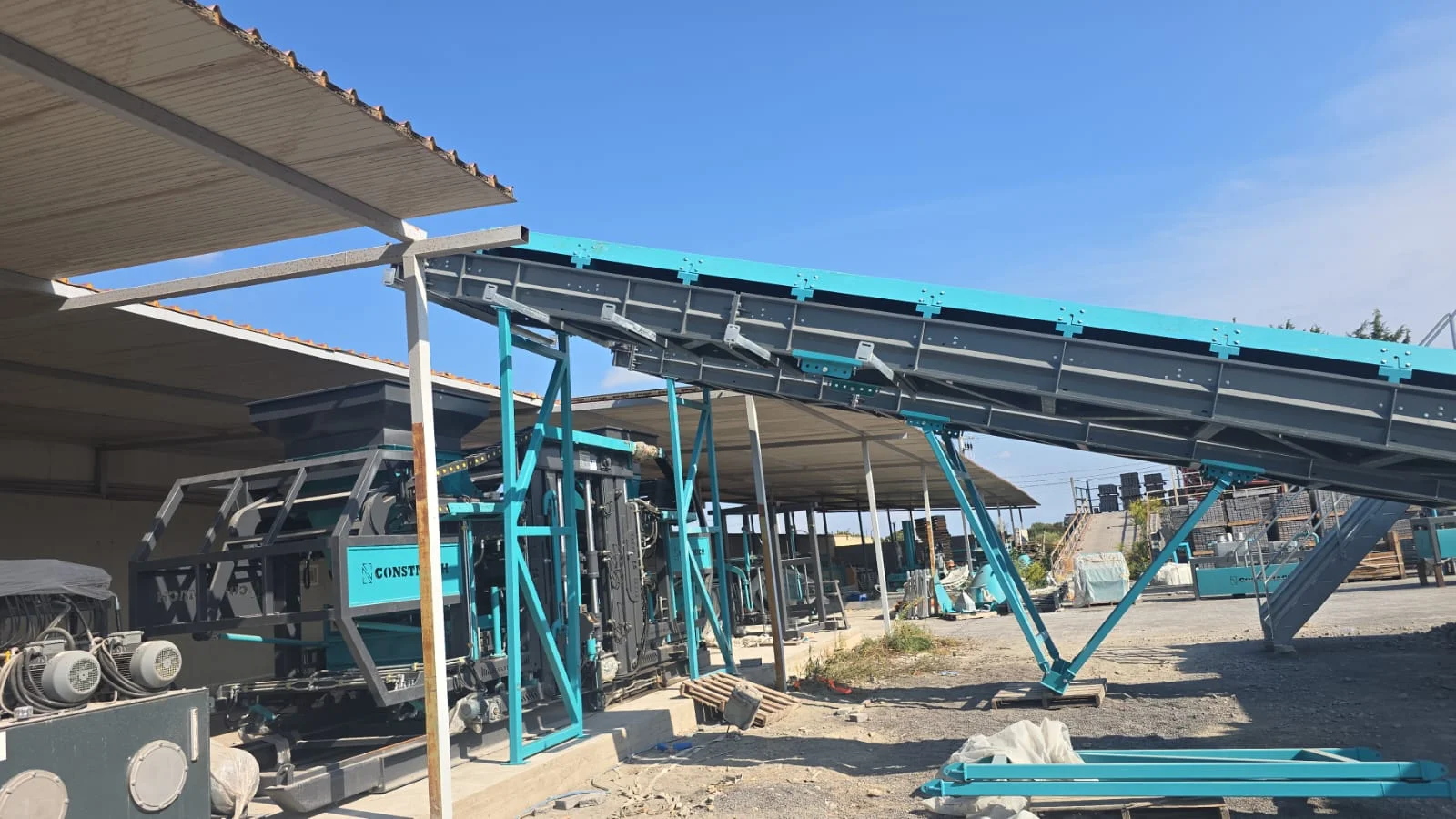

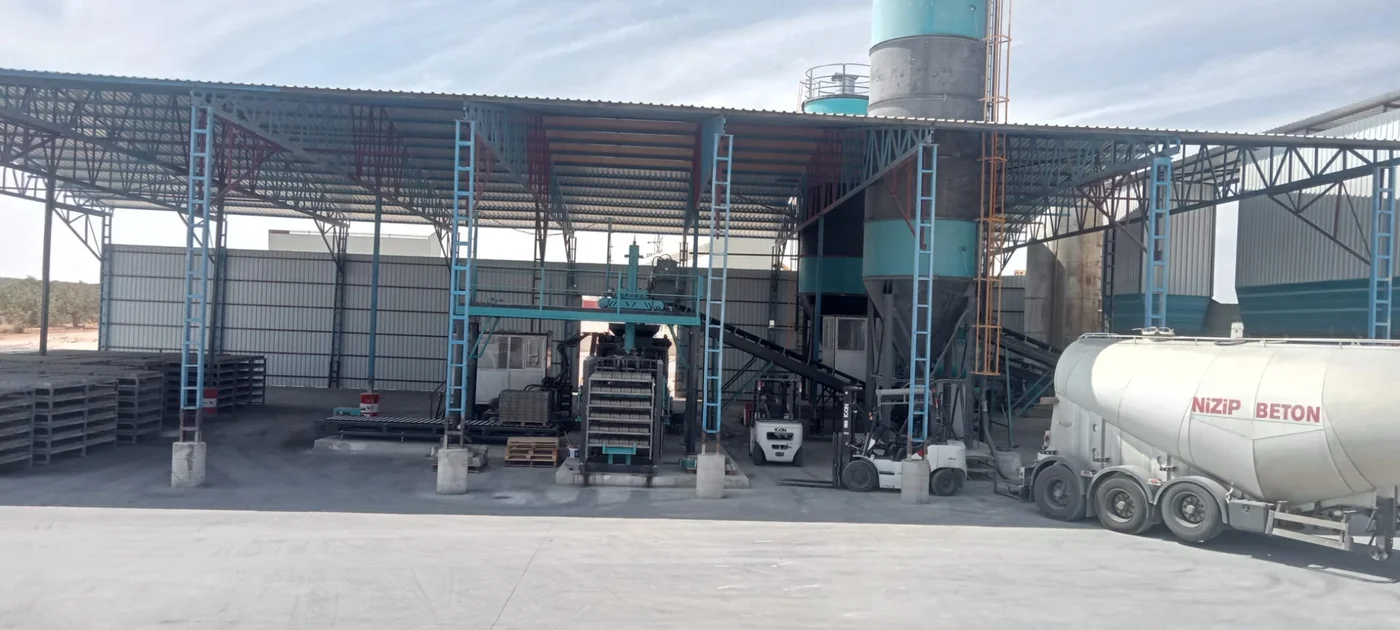

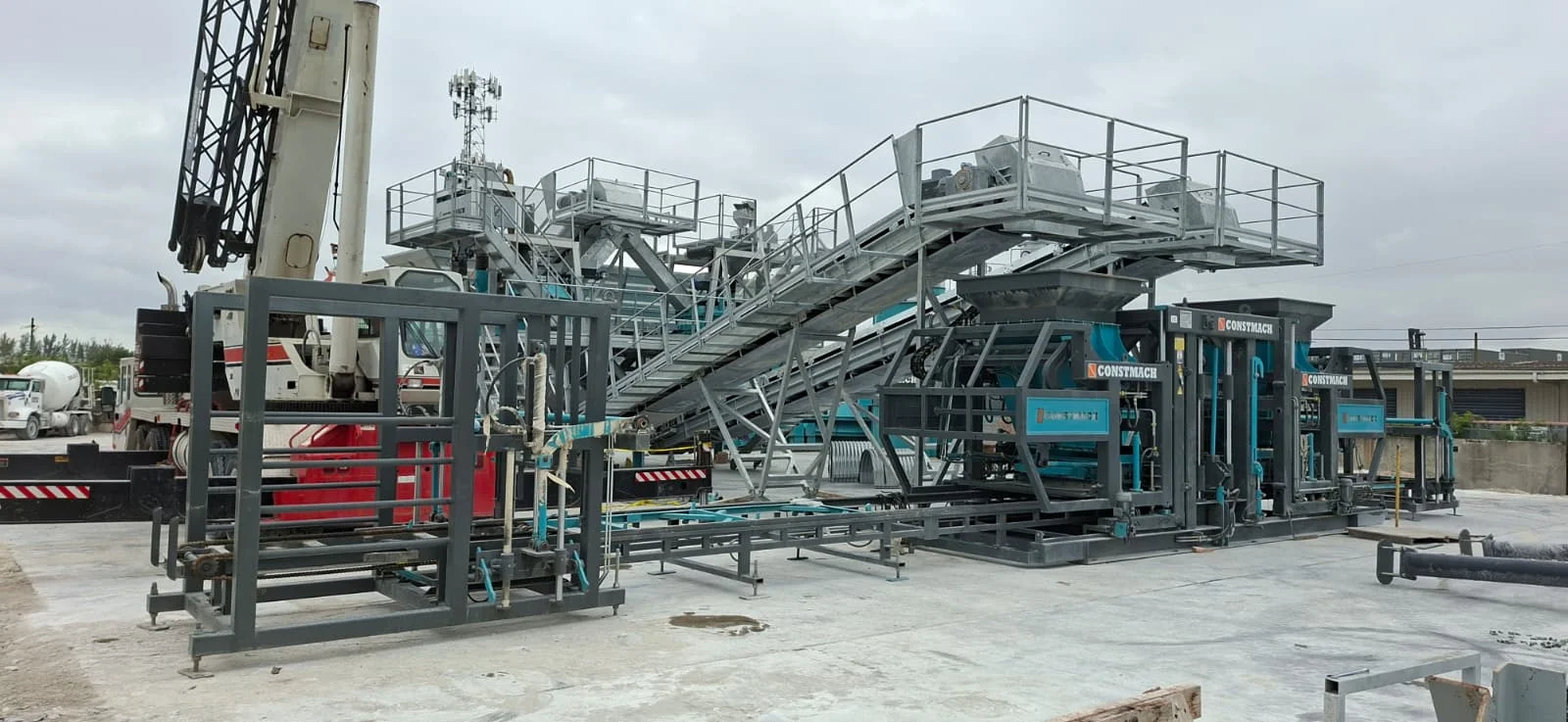

BS-36 Gallery

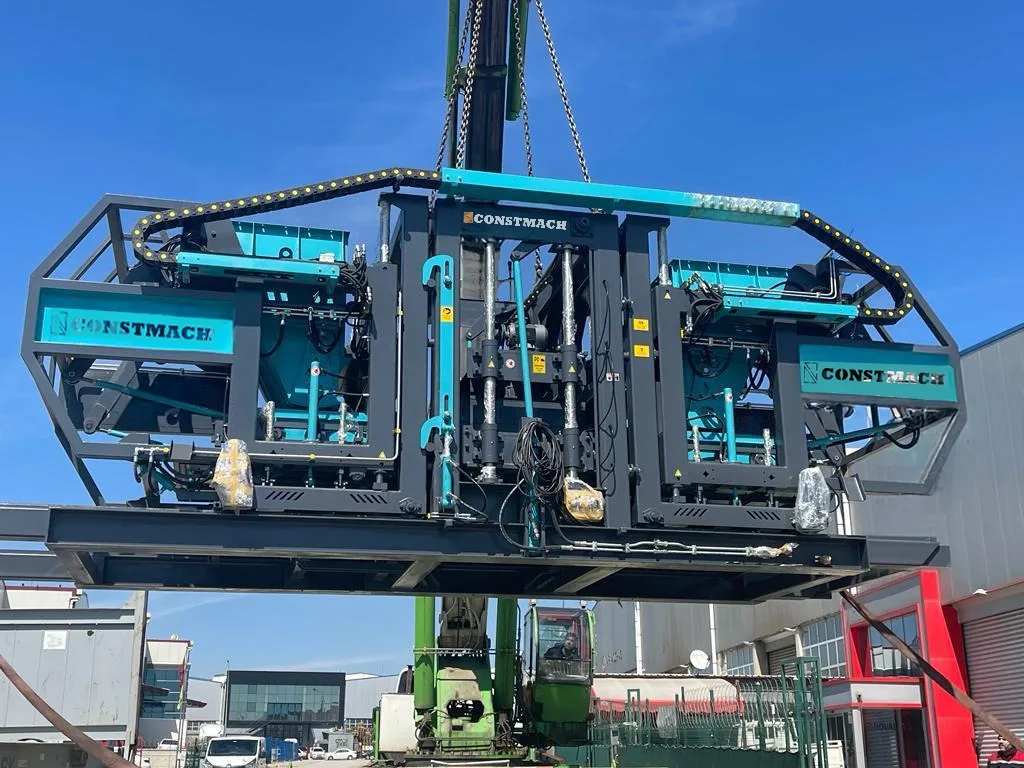

BS-36 Transport
BS-36Video

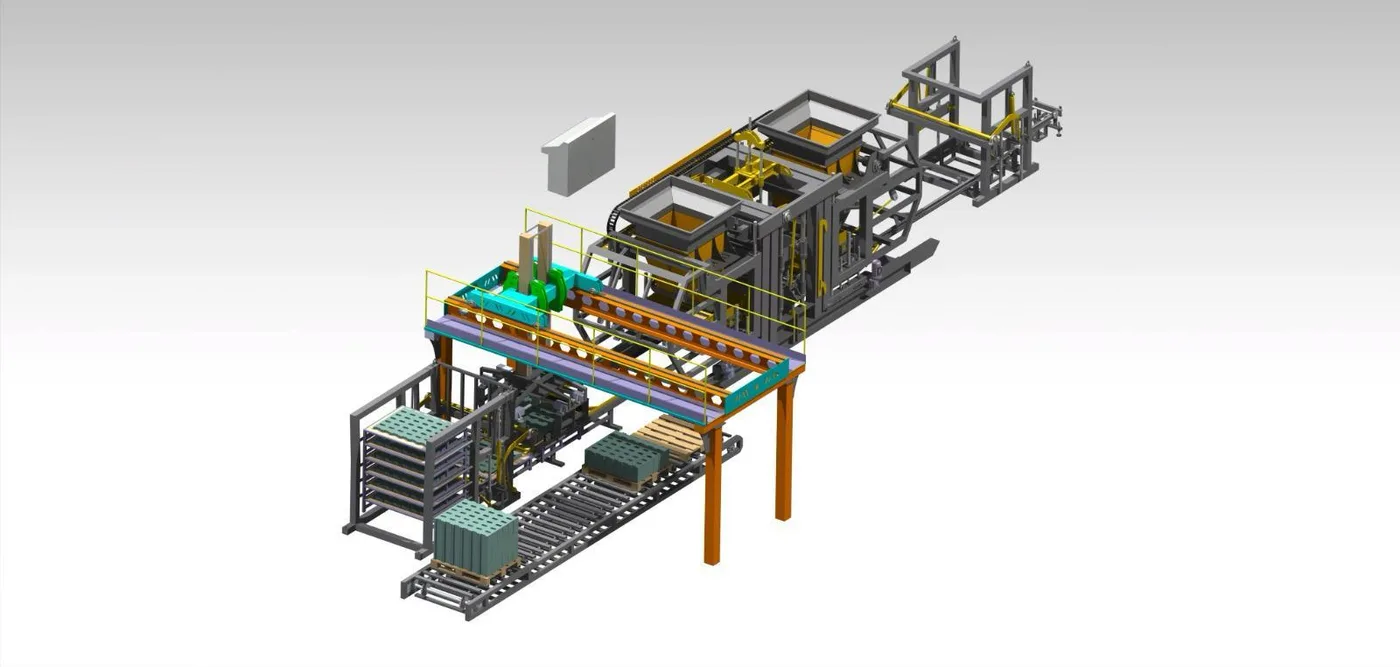

BS-36 General Layout
FAQ
The following sections summarise the products, materials, capacity and equipment associated with the CONSTMACH BS-36 fully automatic concrete block making machine, and explain its position within the BS series.
What the BS-36 Produces
The BS-36 forms hollow concrete blocks and concrete paving stones as standard, producing 15 hollow blocks of 20x40x20 cm and 36 paving stones in each pressing cycle. With a mould change the same press can produce interlocking pavers, solid blocks and other precast concrete units. The products a plant can offer are defined by its mould inventory.
Raw Materials
The machine uses a semi-dry, low-slump concrete mix.
- Aggregates such as crushed stone, gravel and sand
- Cement as the binder
- Water in controlled quantities
- Pigments where coloured paving stones or facing units are required
Production Capacity and Pallet Size
The BS-36 forms 15 hollow blocks and 36 paving stones per cycle, more than the BS-30, on the larger pallet format used by the upper models of the series. The exact pallet dimensions and hourly rate for a given configuration should be confirmed against the manufacturer specification sheet, since output depends on the product, the mix and the mould fitted.
Automation Level
The BS-36 is fully automatic and is run from a PLC-based control panel developed by CONSTMACH engineers. The operator selects automatic or manual mode, recalls stored timing settings, and can stop and resume the cycle from the point at which it was halted. A dry product cubing robot is available to automate handling of the cured units.
Mould Changeover
Each product is defined by its mould box and pressing head. Switching between hollow blocks, paving stones and other units is done by changing the mould and selecting the matching timing recipe in the control system. The number of moulds held determines the variety of products the line can make.
Required Ancillary Equipment and Plant Layout
The press forms part of a complete block plant.
- Aggregate batching and weighing system
- Concrete mixer
- Charging conveyor or skip
- Pallet feeding and handling line
- Curing racks or curing area for multi-layer green product
- Dry product cubing robot or forklift for the dried product
Comparison Across the Range
The BS-36 is one of the larger models in the series, below only the BS-42. The model number reflects the number of paving stones formed per cycle, so capacity rises from 30 on the BS-30 to 36 on the BS-36 and 42 on the BS-42, accompanied by larger pallets and higher installed power. Selection is governed mainly by required output and pallet footprint.
