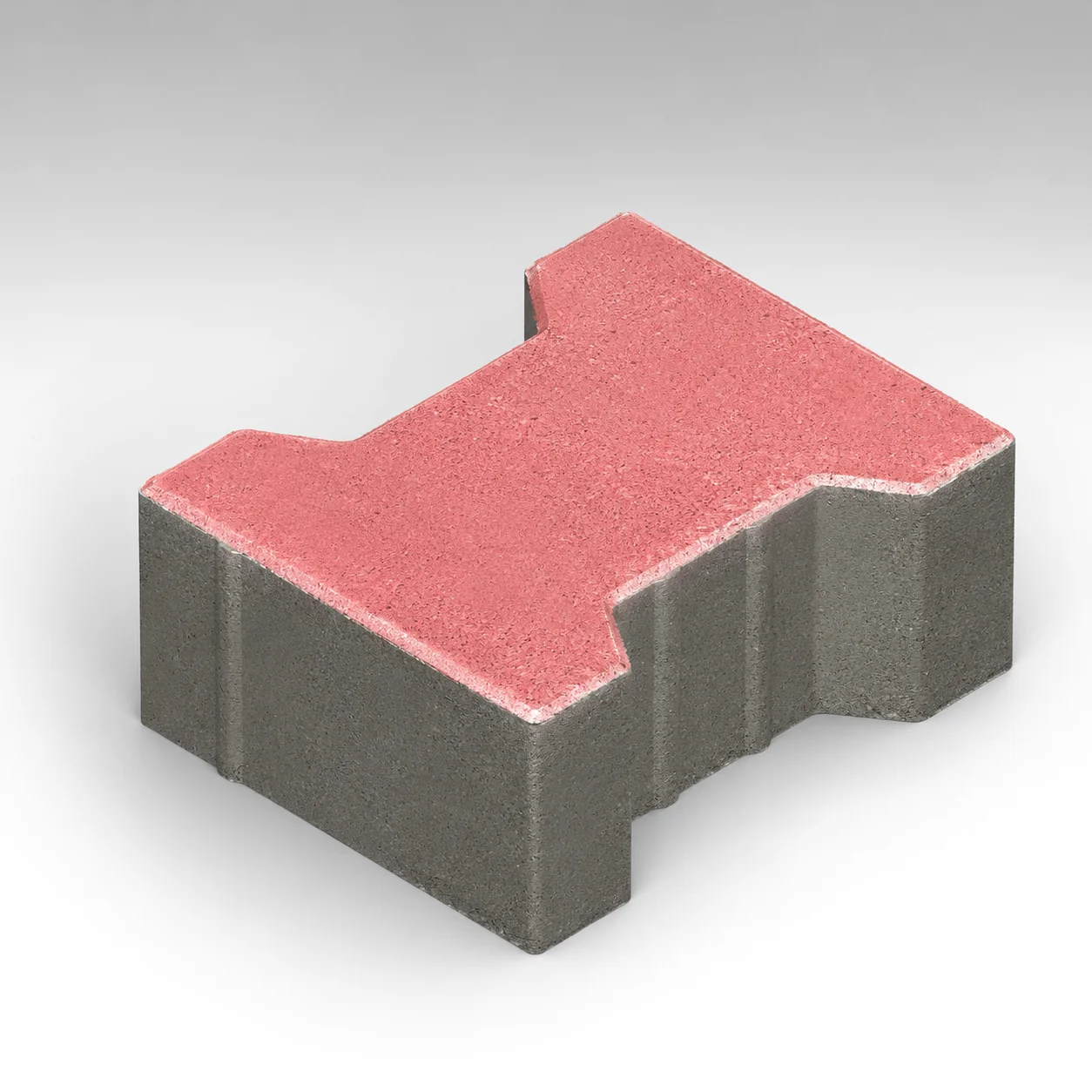

Paving Stone
- Quantity
- 30 pcs per press
- Capacity
- 800 m² in 8 hours

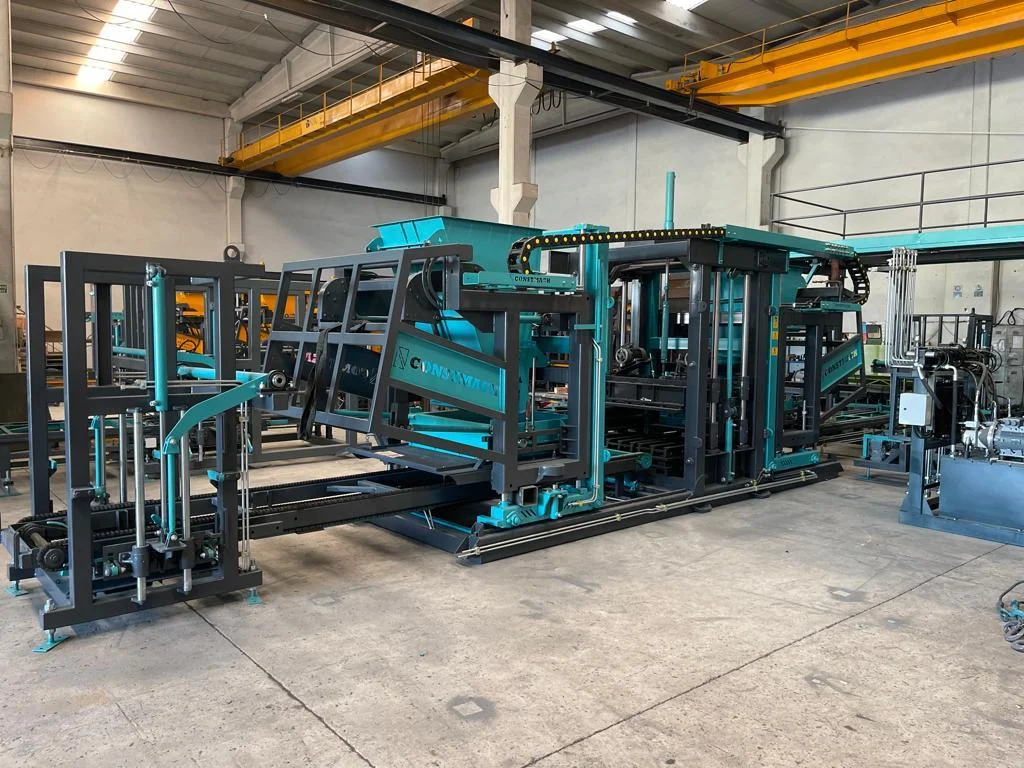

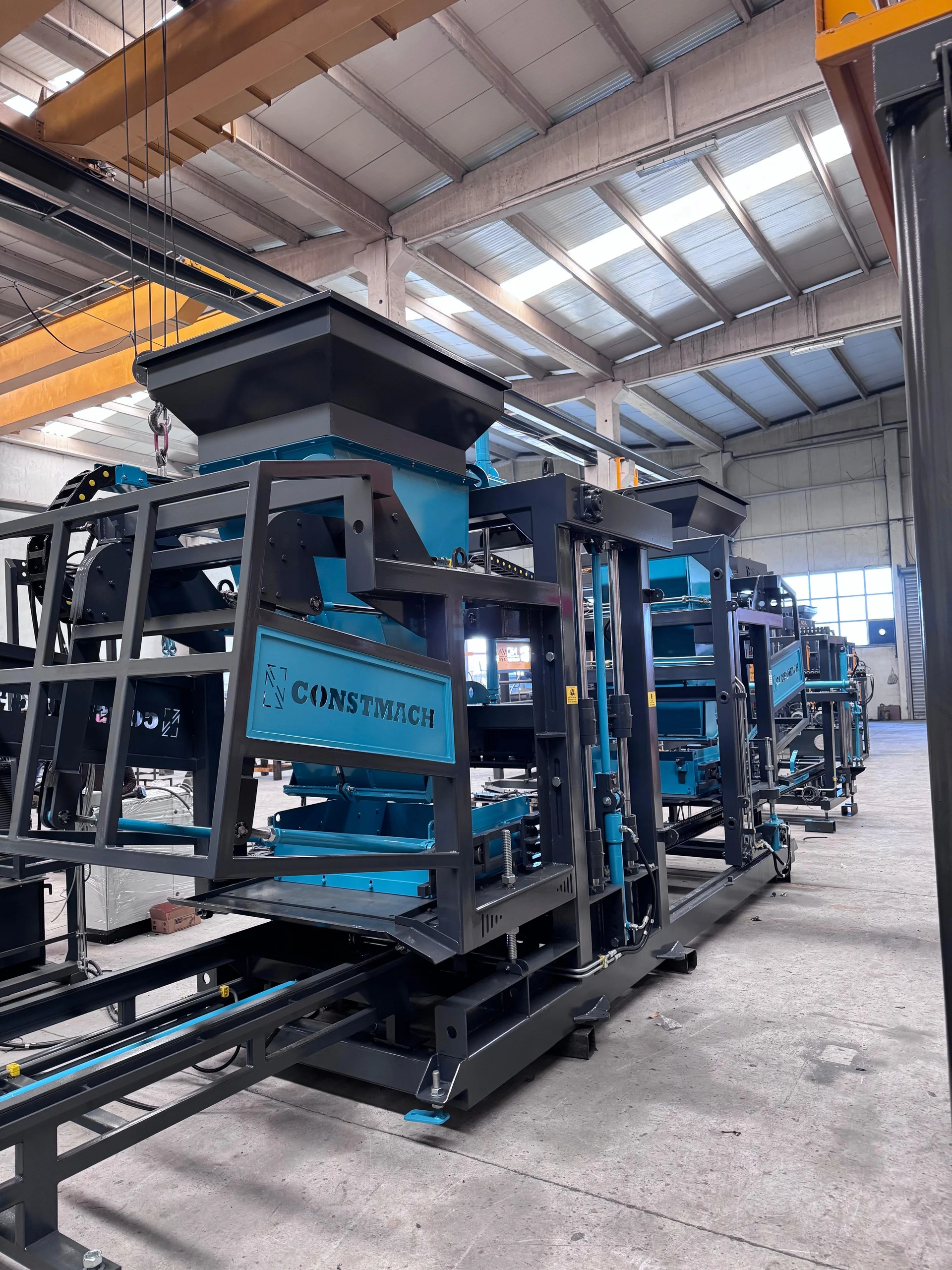

BS-30 | Concrete Block Making Machine
These machines operate on a hydraulic system within a pressure range of 120-130 bar. This machine produces 12 Pcs of blocks of size 20×40×20 cm and 30 Pcs of paving stones in each pressing cycle. Wooden pallets are used for production.
The concrete is pressed into the molds and then pressed onto the pallets. Products produced in the same manner are left to dry on the production wooden pallets.

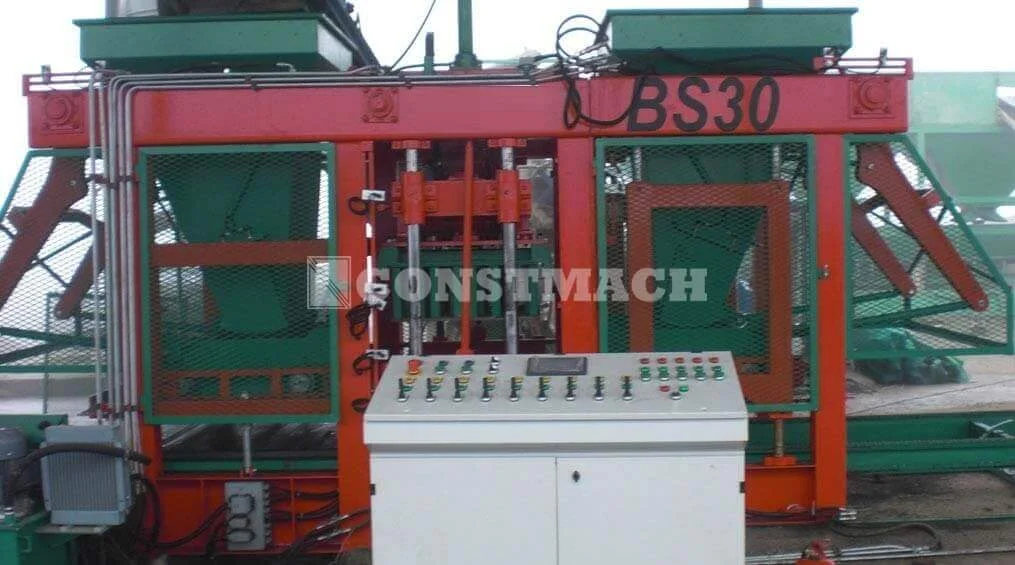

The control panel developed by CONSTMACH engineers ensures ease of machine operation through sensors. The automation system allows for daily production storage. The control panel is user-friendly and provides the necessary timing for different types of blocks and paving stones.
Machine Features:
A+ (A Plus) Energy-saving products
EFF3 Class electric motors
Free spare parts with the machine
CE Declaration for European standards
Use of materials compliant with DIN and TSEK standards
Easy-to-use program selection
Automatic/Manual selection
Stop, wait, and resume production from where the machine stopped
Forklift option available
Troubleshooting via online remote option
Compliance with low voltage directives
Use of safe brand raw materials
Trained personnel and "HL" product models
Fast service and 2-year Machine and spare parts warranty
7/24 pre-sale and after-sale service
Certification at the end of the training period

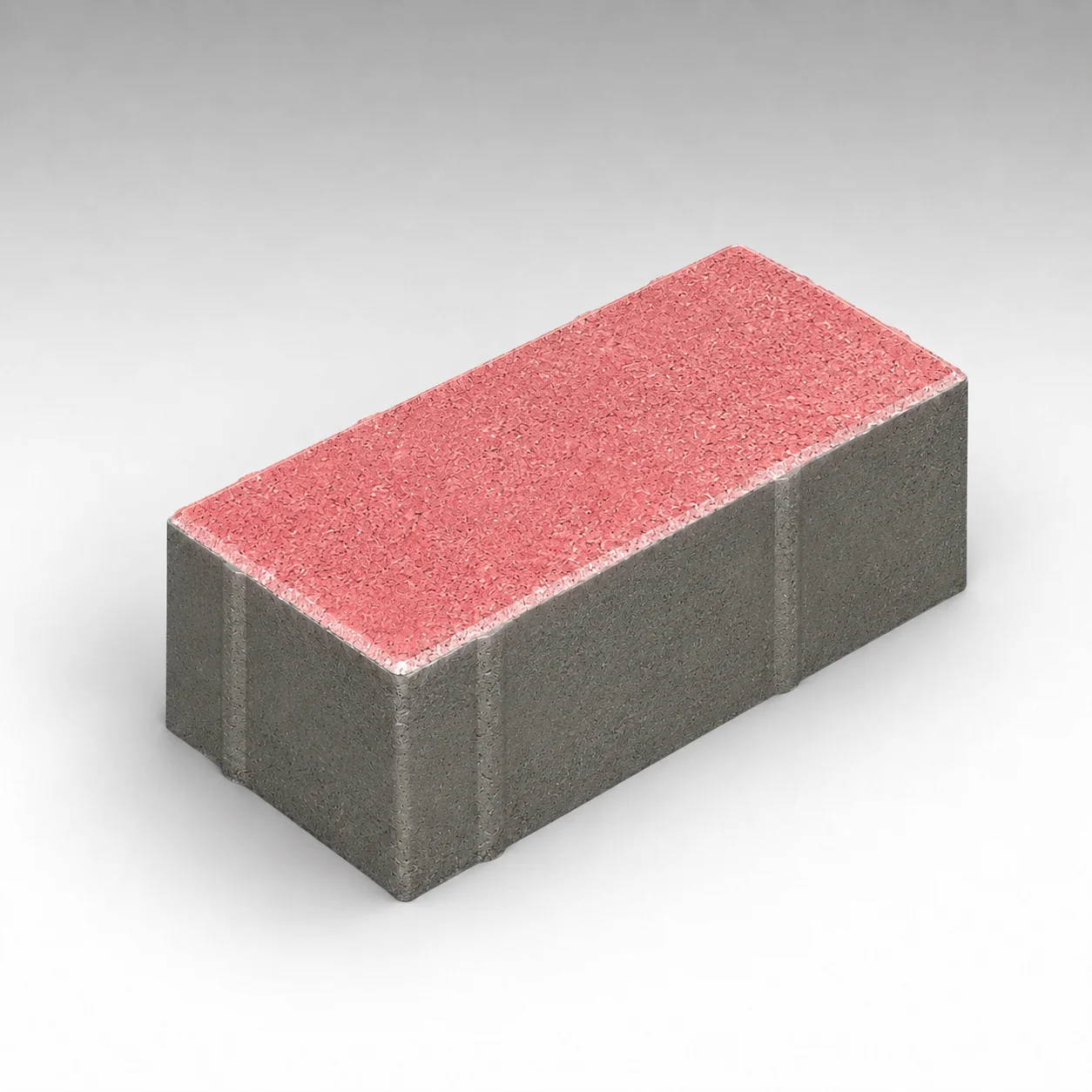

Rectangular Block
- Quantity
- 50 pcs per press
- Capacity
- 860 m² in 8 hours

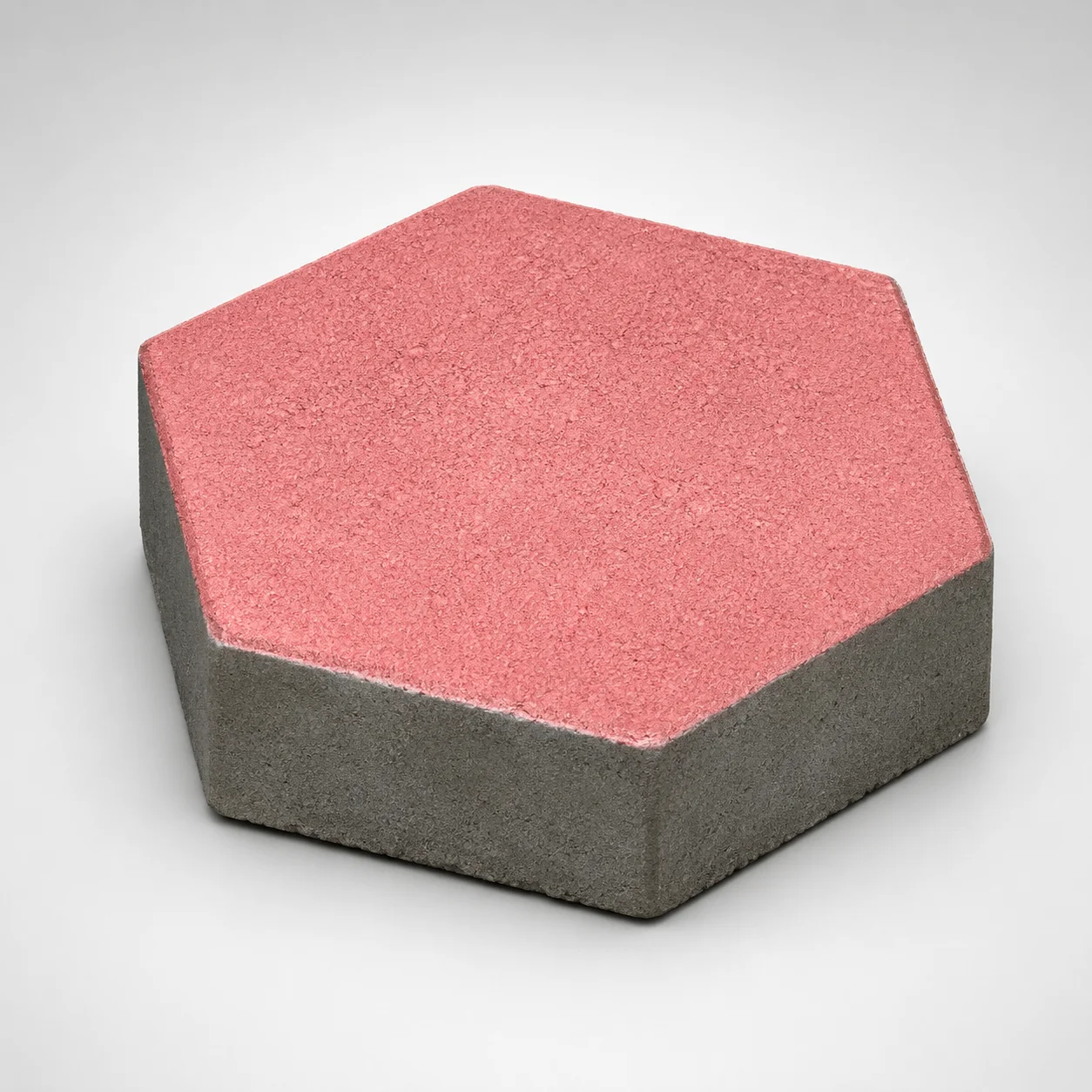

Hexagonal Paving Stones
- Quantity
- 15 pcs per press
- Capacity
- 680 m² in 8 hours

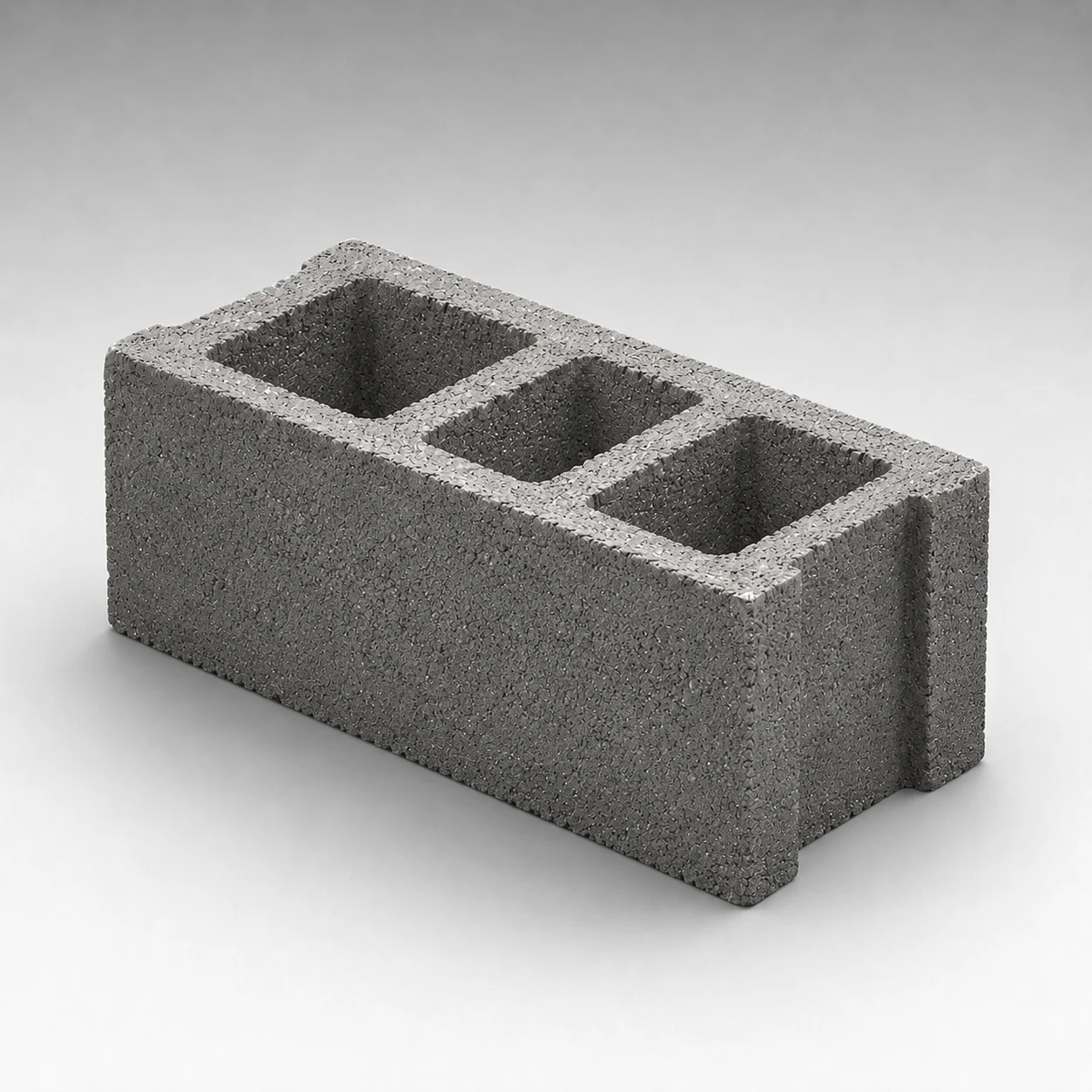

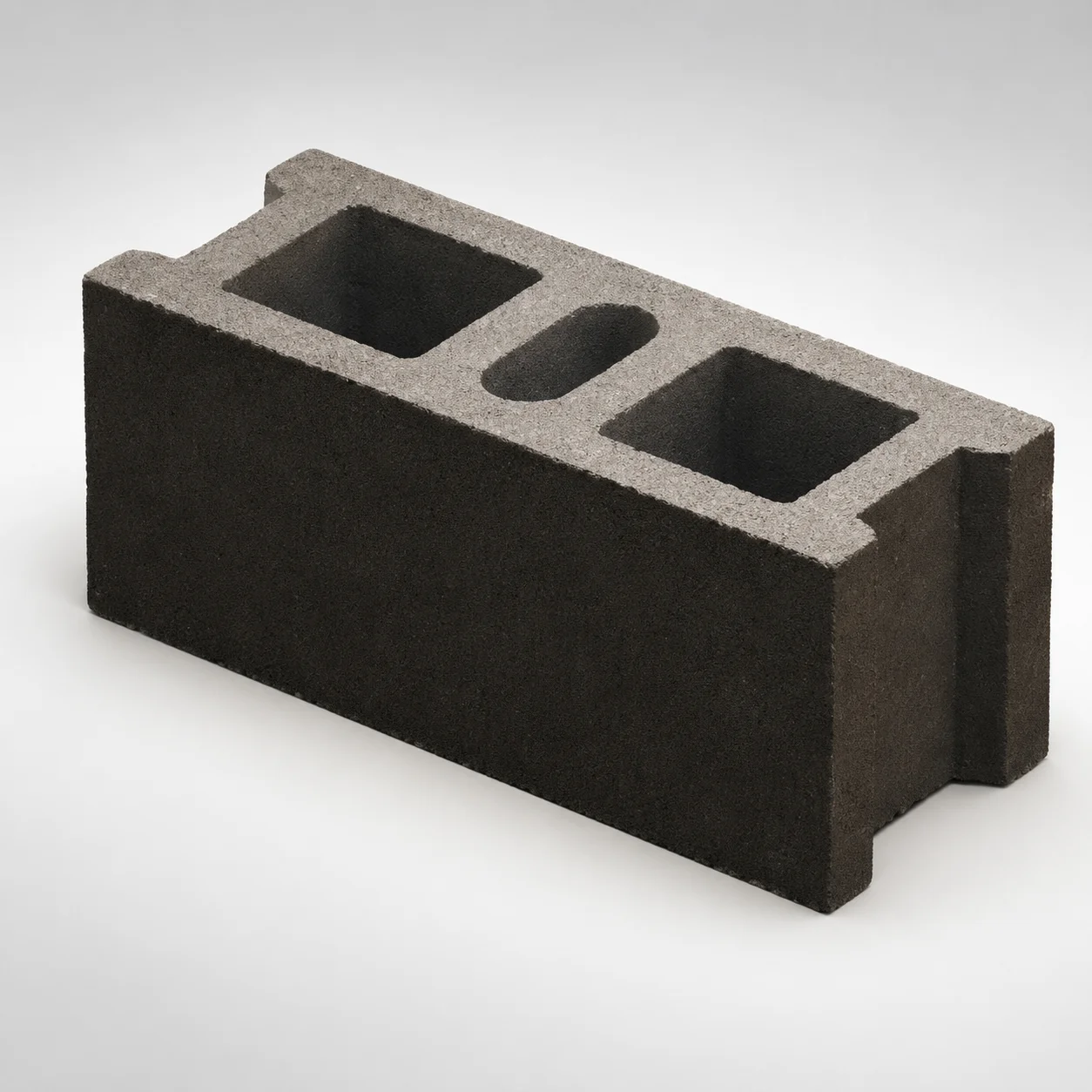

20x40x20 Block
- Quantity
- 12 pcs per press
- Capacity
- 15.000 pieces in 8 hours

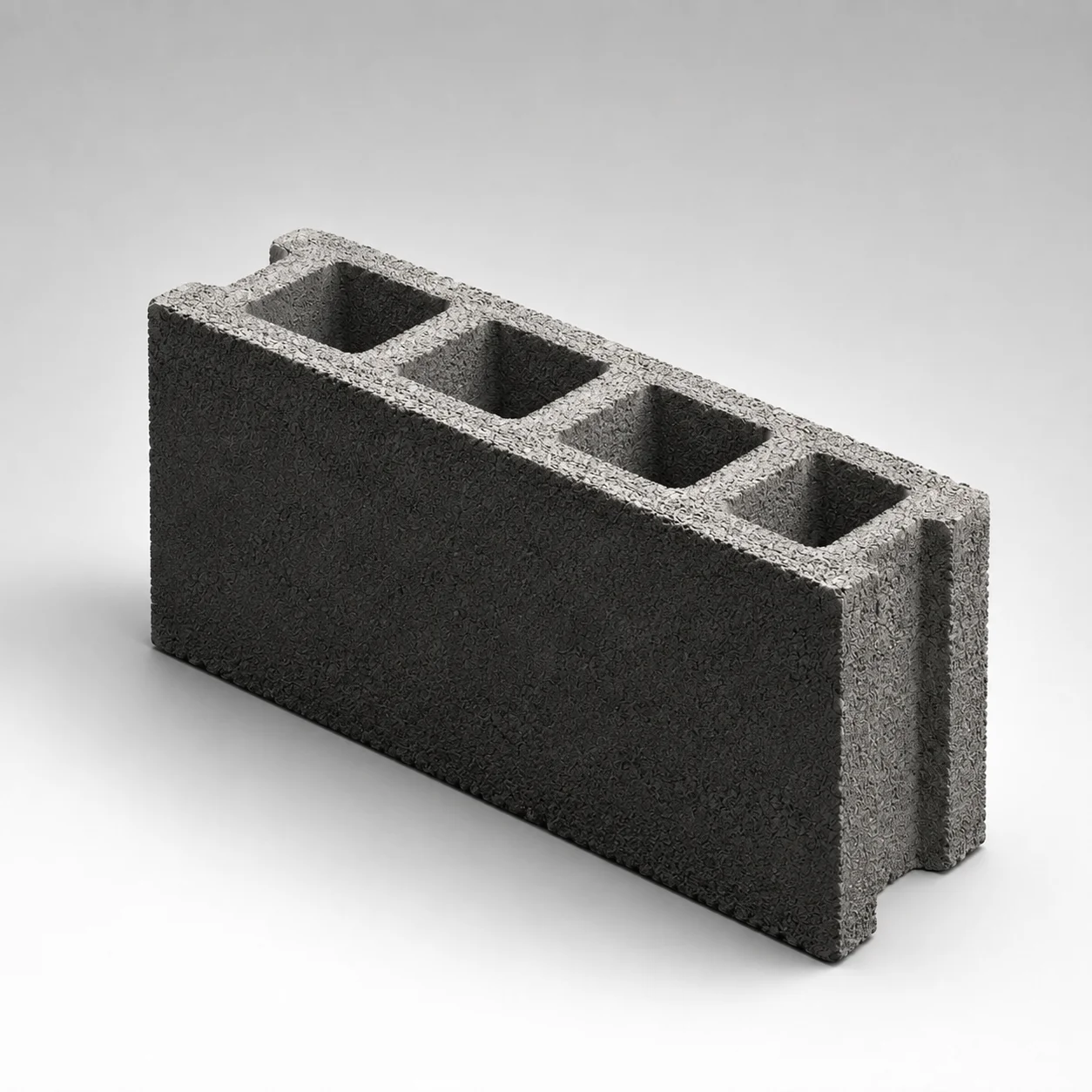

15x40x20 Block
- Quantity
- 14 pcs per press
- Capacity
- 17.000 pieces in 8 hours
10x40x20 Block
- Quantity
- 20 pcs per press
- Capacity
- 24.000 pieces in 8 hours

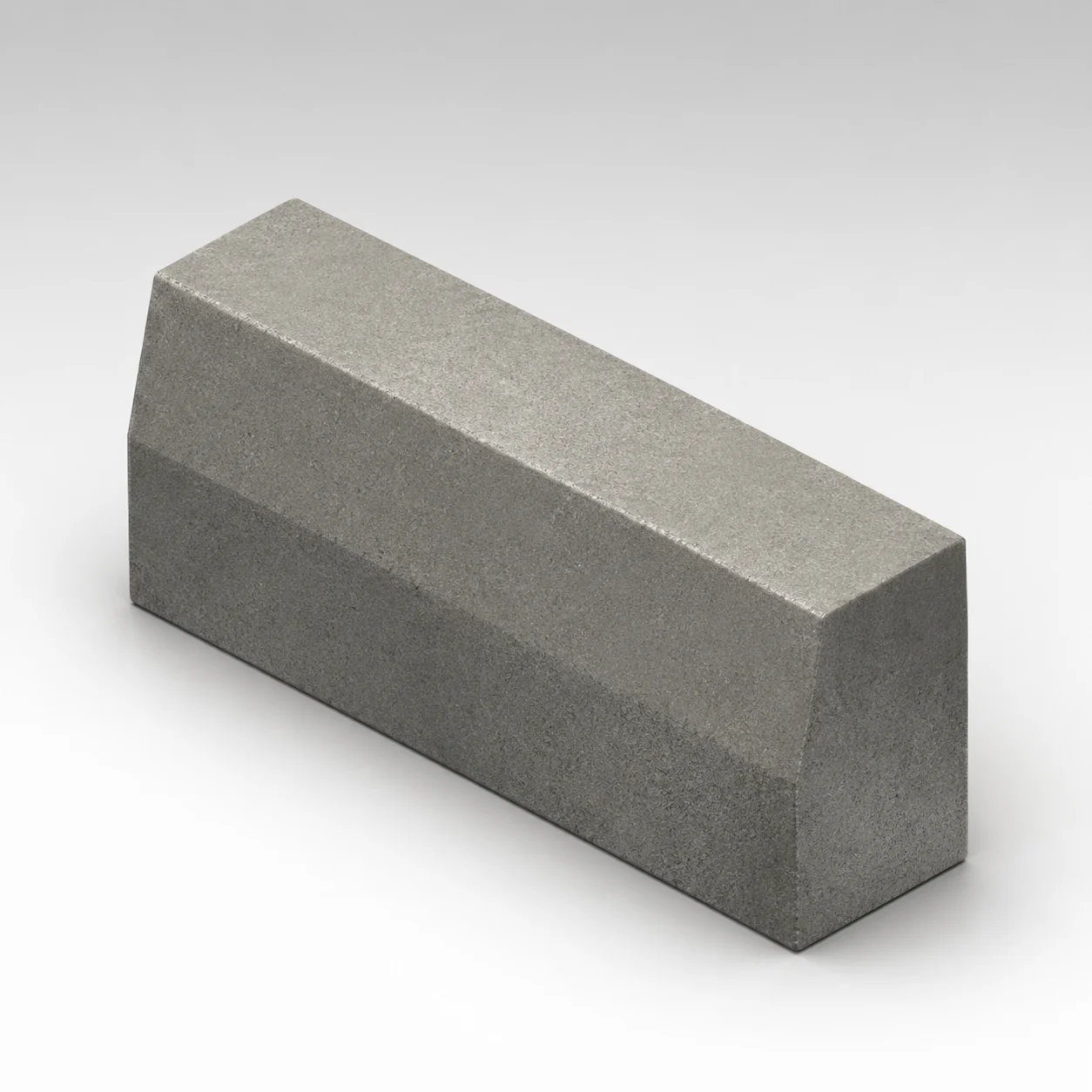

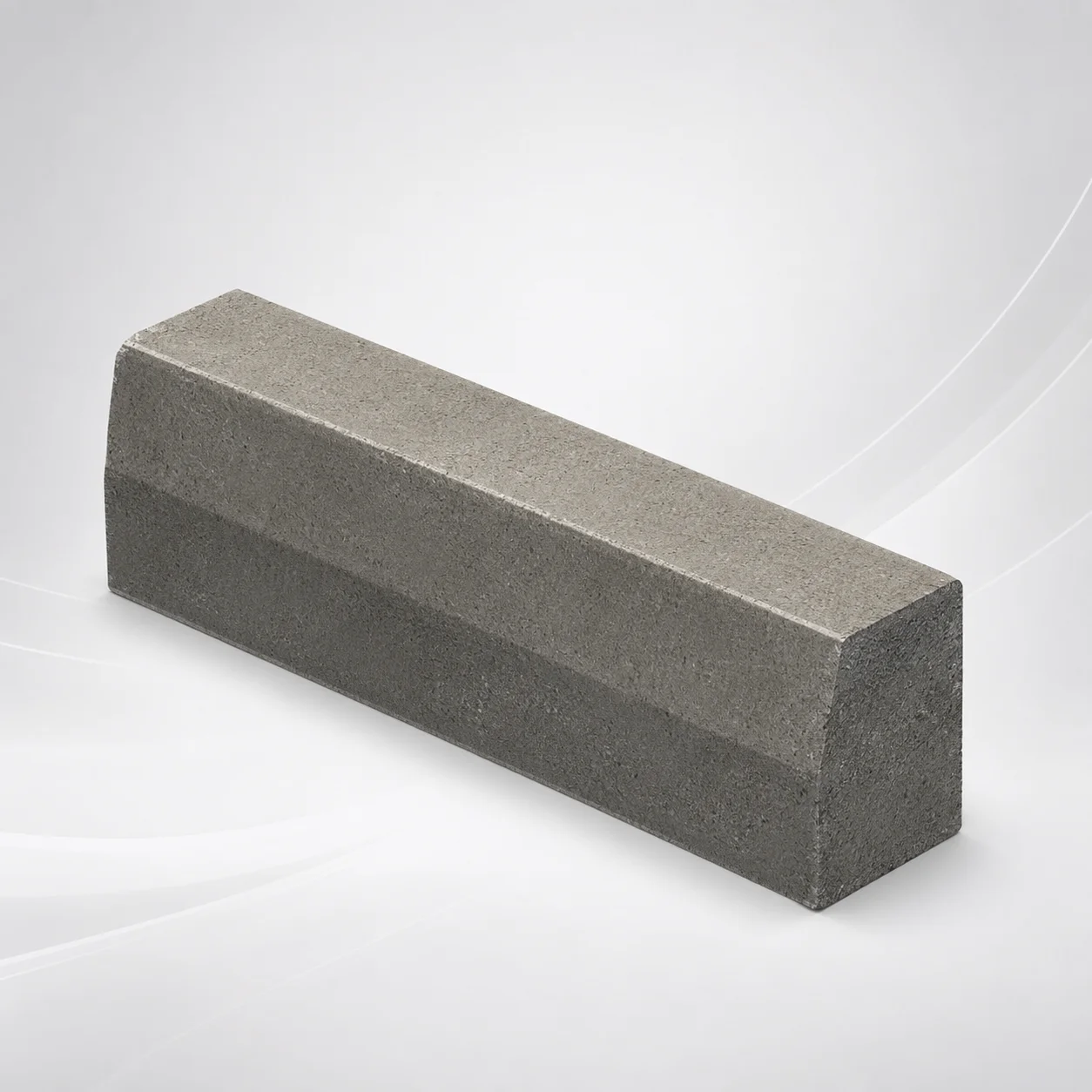

Road Curbstone
- Quantity
- 3 pcs per press
- Capacity
- 2.160 pieces in 8 hours
Garden Curbstone
- Quantity
- 10 pcs per press
- Capacity
- 7.200 pieces in 8 hours
BS-30 Technical Specifications
Production Capacity by Product
| Paving Stone | 30 pcs per press; 800 m² in 8 hours |
|---|---|
| Rectangular Block | 50 pcs per press; 860 m² in 8 hours |
| Hexagonal Paving Stones | 15 pcs per press; 680 m² in 8 hours |
| 20x40x20 Block | 12 pcs per press; 15.000 pieces in 8 hours |
| 15x40x20 Block | 14 pcs per press; 17.000 pieces in 8 hours |
| 10x40x20 Block | 20 pcs per press; 24.000 pieces in 8 hours |
| Road Curbstone | 3 pcs per press; 2.160 pieces in 8 hours |
| Garden Curbstone | 10 pcs per press; 7.200 pieces in 8 hours |
Technical Specifications
| Production Capacity | 120 – 130 pallets per hour |
|---|---|
| Pallet Size | 1200 x 1150 x 40 mm |
| Control | PLC Automation System (Schneider), 10 inch touch screen |
| Hopper Capacity | 1.5 m³ |
| Hydraulic Oil Capacity | 500 lt |
| Upper Vibration | 3 kW x 2 |
| Lower Vibration | 4 kW x 4 |
| Total Electricity Capacity | 180 kW |
| Total Vibration Force | 30.000 |
| Inner Swing System | Hydraulic |
| Maximum Product Height | 30 cm |
| Minimum Product Height | 6 cm |
| Machine Chassis Frame | 10 mm Profile |
| System of Vibration | Classic Belt and Pulley Vibration |
| Estimated Production Capacity in 8 Hours | 20x40x20 block – 12.000 - 15.000 pieces; interlock – 30.000 pieces |
| Pressing Amount per Press | 20x40x20 block – 12 pieces; interlock – 30 pieces |
| Stacking Layer | 5 – 7 Rows |
| Cleaning Brush | Present |
| Back Dry Product | Hydraulic Driver |
| Pallet Size | 1200 x 1150 x 40 mm |
BS-30 Gallery

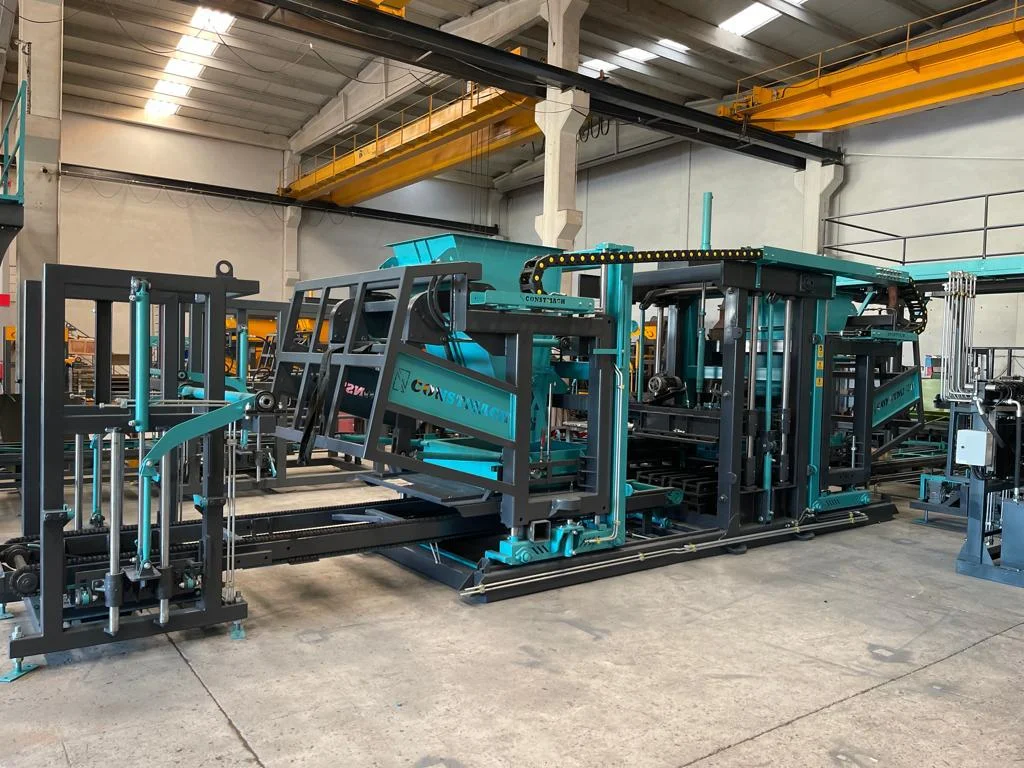

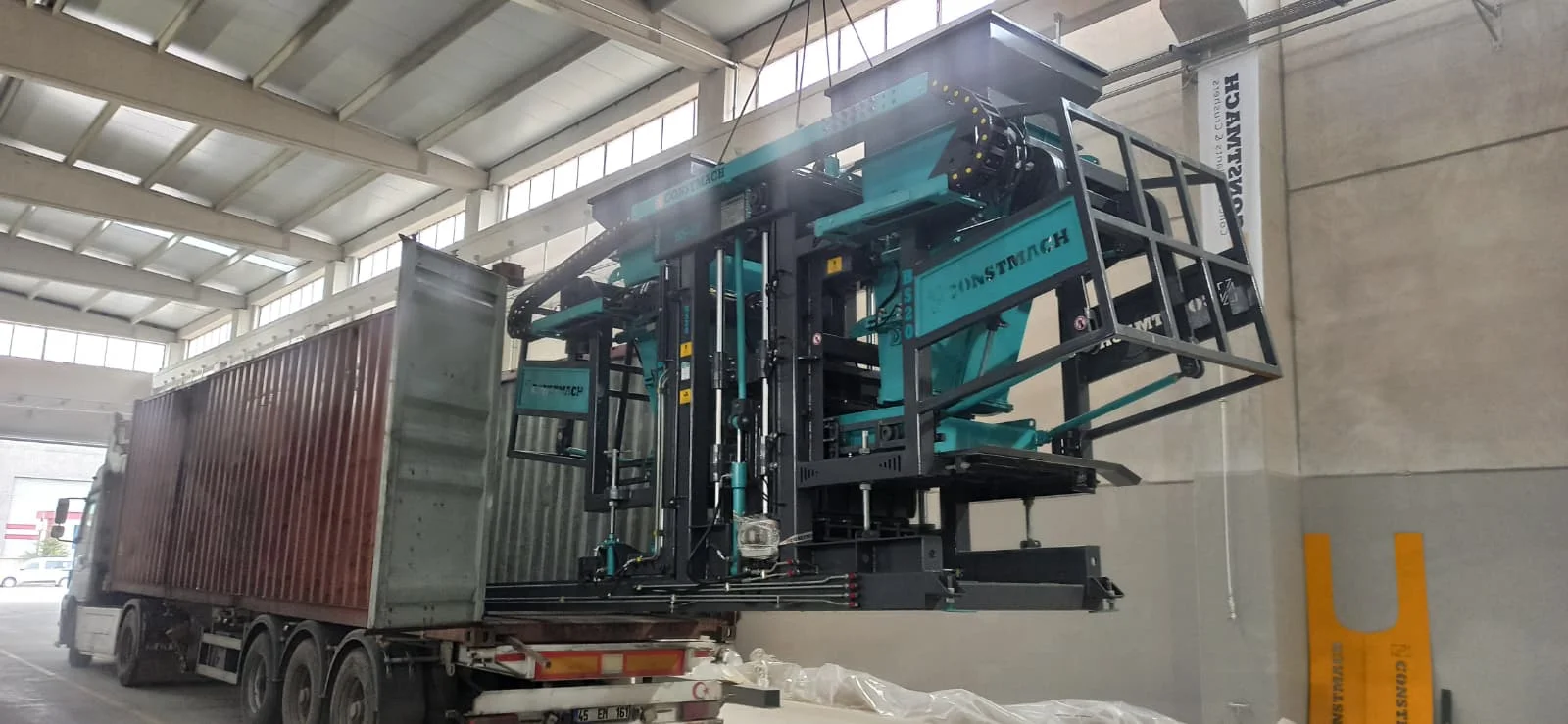

BS-30 Transport
BS-30Video
BS-30 General Layout
FAQ
The following sections summarise the products, materials, capacity and equipment associated with the CONSTMACH BS-30 fully automatic concrete block making machine, and explain its position within the BS series.
What the BS-30 Produces
The BS-30 forms hollow concrete blocks and concrete paving stones as standard, producing 12 hollow blocks of 20x40x20 cm and 30 paving stones in each pressing cycle. With a mould change the same press can produce interlocking pavers, solid blocks and other precast concrete units. The products a plant can offer are defined by its mould inventory.
Raw Materials
The machine uses a semi-dry, low-slump concrete mix.
- Aggregates such as crushed stone, gravel and sand
- Cement as the binder
- Water in controlled quantities
- Pigments where coloured paving stones or facing units are required

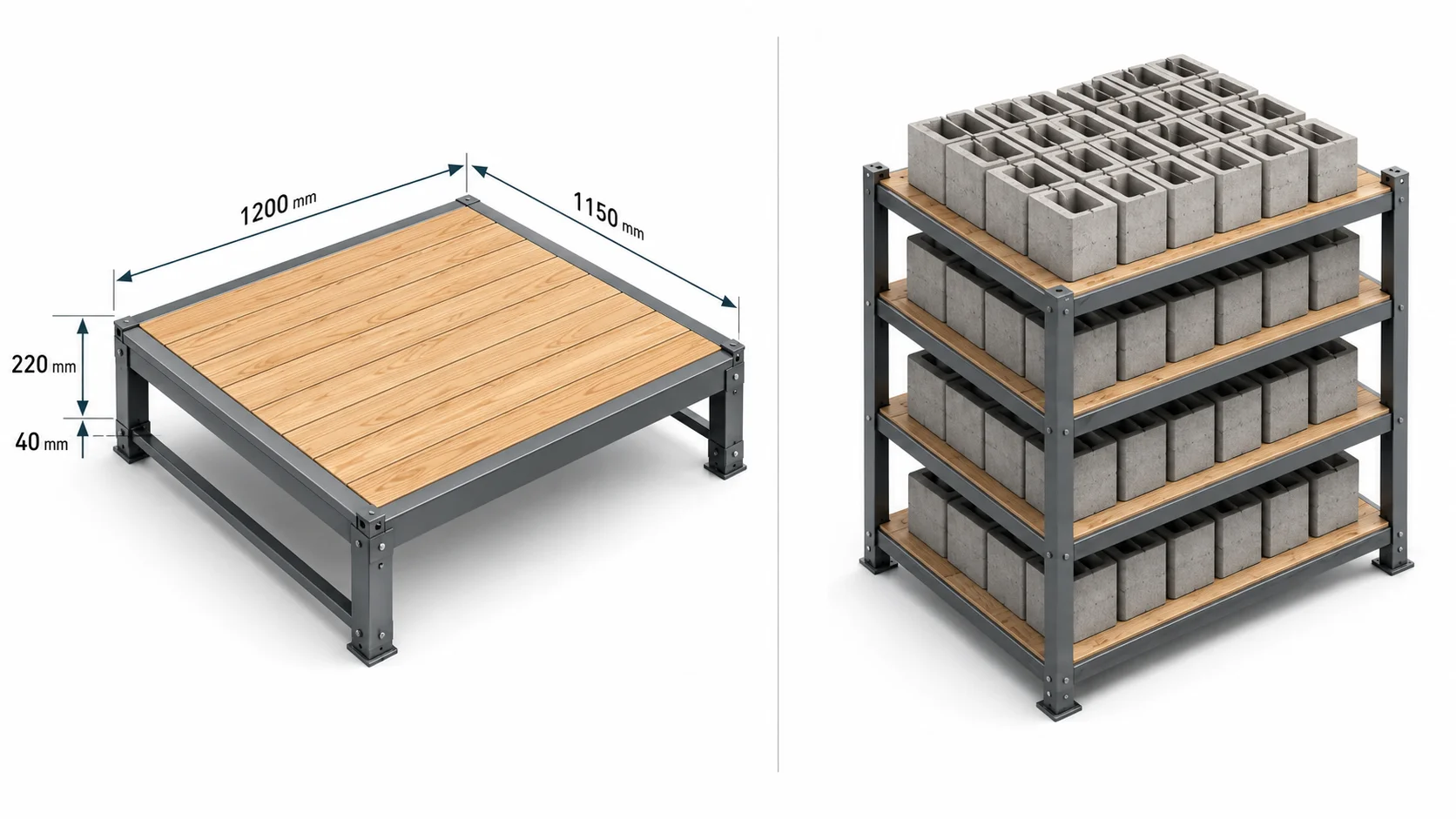

Production Capacity and Pallet Size
The BS-30 is rated at 110 to 120 pallets per hour and uses a production pallet of 1200 x 1150 x 230 mm. Over an eight-hour shift this corresponds to figures in the region of 12,000 hollow blocks of 20x40x20 cm or about 28,000 interlocking paving stones, depending on the product and mould in use.
Automation Level
The BS-30 is fully automatic and is controlled by a Schneider PLC system. The operator selects automatic or manual mode, recalls stored timing settings for different products, and can stop and resume the cycle from the point at which it was halted, so production is supervised rather than manually driven.
Mould Changeover
Each product is defined by its mould box and pressing head. Switching between hollow blocks, paving stones and other units is done by changing the mould and selecting the matching timing recipe in the control panel. The number of moulds held determines the variety of products the line can make.
Required Ancillary Equipment and Plant Layout
The press forms part of a complete block plant.
- Aggregate batching and weighing system
- Concrete mixer
- Charging conveyor or skip
- Pallet feeding and handling line
- Curing racks or curing area for multi-layer green product
- Stacking or cubing arrangement and forklift for the dried product
Comparison Across the Range
The BS-30 occupies the middle of the series. The model number reflects the number of paving stones formed per cycle, so capacity rises from 25 on the BS-25 to 30 on the BS-30 and onward through the BS-36 and BS-42, accompanied by larger pallets and higher installed power. Selection is governed mainly by required output and pallet footprint.
Frequently Asked Questions
